Connecting eSata multi-bay enclosure to Pogo v4

[WarheadsSE]

I want pictures when you are done!

[Sergeanter]

Not the kind of pictures you wanted but still...

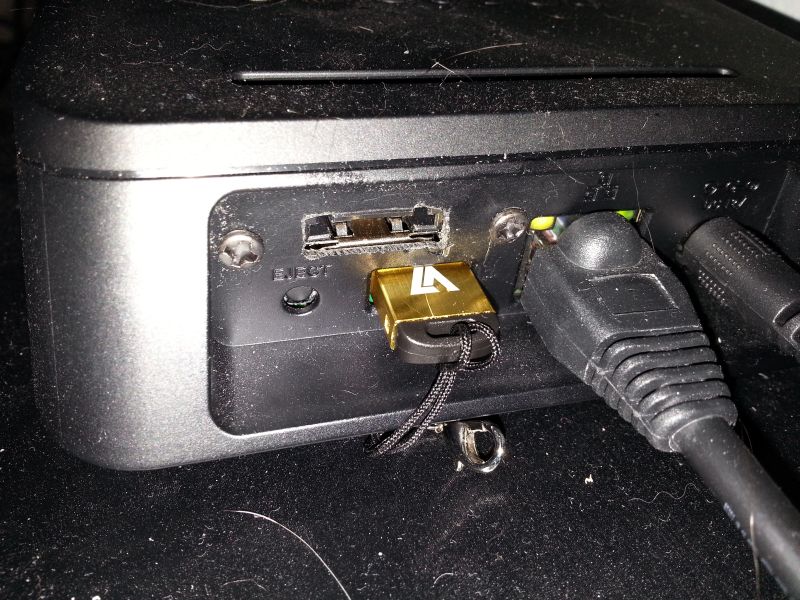

Pogo Mobile SATA1 port port added

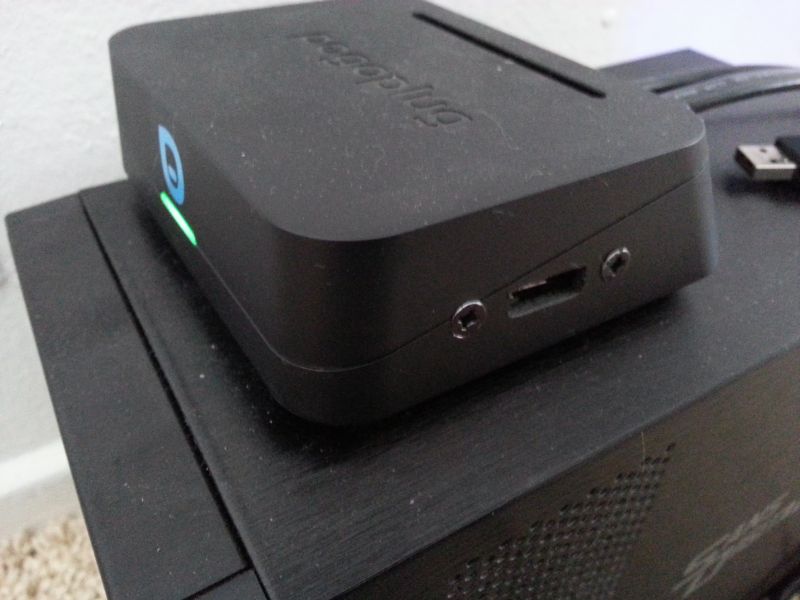

Pogo Mobile SATA0 port added

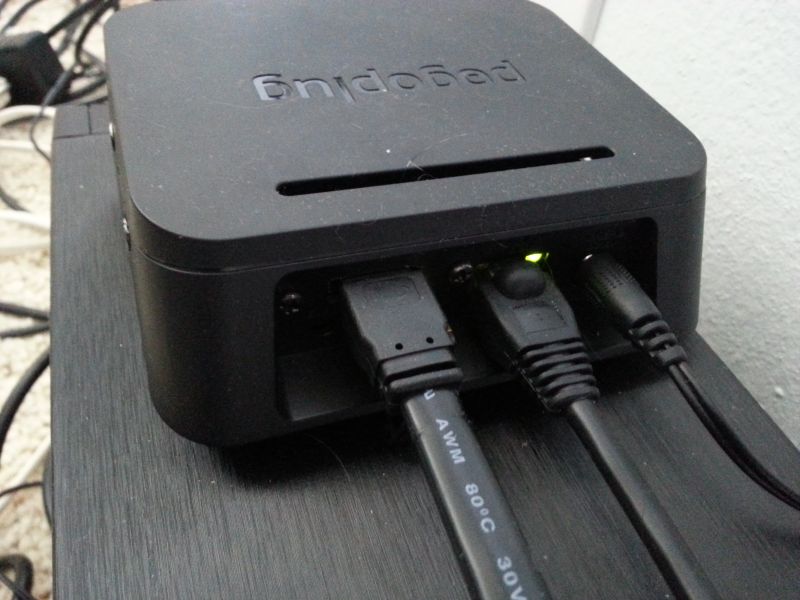

external cage with RAID5 connected via eSATA


[Sergeanter]

I will mark up PCB picture later today with pin locations and post custom kernel and dmesg output showing second port working.
The pain is I would need to re-compile kernel every time I upgrade. The patch needs to be patched With distcc on Inspiron 4100 under Ubuntu compiling kernel takes awhile . I am not sure which machine is faster actually.
If we could get jumbo frames working, I might be willing to freeze this setup and just let it stay with 3.0.28. I got samba and twonky 7.2.6-2 working and this is all I need from this box.
I am thinking about buying a whole bunch of these Mobile units and putting a "server farm" together : www, rtorrent , imagevue etc.
It would be a huge upgrade from my all in one wl500gp with 300 bogomips

[WarheadsSE]

$this->bbcode_second_pass_quote('', 's')tay with 3.0.28.

[Sergeanter]

whoops
3.1.10-28
not a software guy
Anyway, here are the dmesg logs:
With eSATA on port 0
$this->bbcode_second_pass_code('', '[ 0.000000] Initializing cgroup subsys cpuset
[ 0.000000] Initializing cgroup subsys cpu
[ 0.000000] Linux version 3.1.10-28-ARCH (root@alarm) (gcc version 4.7.2 (GCC) ) #1 PREEMPT Mon Dec 16 12:56:52 PST 2013
[ 0.000000] CPU: Feroceon 88FR131 [56251311] revision 1 (ARMv5TE), cr=00053977
[ 0.000000] CPU: VIVT data cache, VIVT instruction cache
[ 0.000000] Machine: Pogoplug V4
[ 0.000000] Memory policy: ECC disabled, Data cache writeback
[ 0.000000] On node 0 totalpages: 32768
[ 0.000000] free_area_init_node: node 0, pgdat c05a7660, node_mem_map c0678000
[ 0.000000] Normal zone: 256 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 32512 pages, LIFO batch:7
[ 0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[ 0.000000] pcpu-alloc: [0] 0
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 32512
[ 0.000000] Kernel command line: console=ttyS0,115200 root=/dev/sda1 rootwait rootfstype=ext3
[ 0.000000] PID hash table entries: 512 (order: -1, 2048 bytes)
[ 0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
[ 0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
[ 0.000000] allocated 524288 bytes of page_cgroup
[ 0.000000] please try 'cgroup_disable=memory' option if you don't want memory cgroups
[ 0.000000] Memory: 128MB = 128MB total
[ 0.000000] Memory: 122776k/122776k available, 8296k reserved, 0K highmem
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB)
[ 0.000000] fixmap : 0xfff00000 - 0xfffe0000 ( 896 kB)
[ 0.000000] DMA : 0xffc00000 - 0xffe00000 ( 2 MB)
[ 0.000000] vmalloc : 0xc8800000 - 0xfe800000 ( 864 MB)
[ 0.000000] lowmem : 0xc0000000 - 0xc8000000 ( 128 MB)
[ 0.000000] modules : 0xbf000000 - 0xc0000000 ( 16 MB)
[ 0.000000] .text : 0xc0008000 - 0xc05433ec (5357 kB)
[ 0.000000] .init : 0xc0544000 - 0xc056f000 ( 172 kB)
[ 0.000000] .data : 0xc0570000 - 0xc05a9e50 ( 232 kB)
[ 0.000000] .bss : 0xc05a9e74 - 0xc06771cc ( 821 kB)
[ 0.000000] SLUB: Genslabs=13, HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[ 0.000000] Preemptible hierarchical RCU implementation.
[ 0.000000] NR_IRQS:114
[ 0.000000] sched_clock: 32 bits at 166MHz, resolution 5ns, wraps every 25769ms
[ 0.000000] Console: colour dummy device 80x30
[ 6.755202] Calibrating delay loop... 795.44 BogoMIPS (lpj=3977216)
[ 6.795079] pid_max: default: 32768 minimum: 301
[ 6.795268] Security Framework initialized
[ 6.795304] AppArmor: AppArmor disabled by boot time parameter
[ 6.795399] Mount-cache hash table entries: 512
[ 6.795970] Initializing cgroup subsys cpuacct
[ 6.796007] Initializing cgroup subsys memory
[ 6.796060] Initializing cgroup subsys devices
[ 6.796078] Initializing cgroup subsys freezer
[ 6.796093] Initializing cgroup subsys net_cls
[ 6.796106] Initializing cgroup subsys blkio
[ 6.796140] Initializing cgroup subsys perf_event
[ 6.796169] Initializing cgroup subsys bfqio
[ 6.796305] CPU: Testing write buffer coherency: ok
[ 6.798160] devtmpfs: initialized
[ 6.800863] NET: Registered protocol family 16
[ 6.801822] Kirkwood: MV88F6281-A1, TCLK=166666667.
[ 6.801843] Feroceon L2: Enabling L2
[ 6.801891] Feroceon L2: Cache support initialised.
[ 6.802631] initial MPP regs: 21111111 03303311 00551100 00000000 00000000 00000000 00000000
[ 6.802672] final MPP regs: 21111111 11113311 00551111 00000000 00000000 00000000 00000000
[ 6.803690] Kirkwood PCIe port 0:
[ 6.803702] link down, ignoring
[ 6.810445] bio: create slab <bio-0> at 0
[ 6.810944] vgaarb: loaded
[ 6.811344] SCSI subsystem initialized
[ 6.811560] libata version 3.00 loaded.
[ 6.811880] usbcore: registered new interface driver usbfs
[ 6.812009] usbcore: registered new interface driver hub
[ 6.812153] usbcore: registered new device driver usb
[ 6.812958] Switching to clocksource orion_clocksource
[ 6.815074] Switched to NOHz mode on CPU #0
[ 6.826197] FS-Cache: Loaded
[ 6.840128] NET: Registered protocol family 2
[ 6.840477] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 6.841524] TCP established hash table entries: 4096 (order: 3, 32768 bytes)
[ 6.841671] TCP bind hash table entries: 4096 (order: 2, 16384 bytes)
[ 6.841751] TCP: Hash tables configured (established 4096 bind 4096)
[ 6.841765] TCP reno registered
[ 6.841785] UDP hash table entries: 256 (order: 0, 4096 bytes)
[ 6.841818] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[ 6.842156] NET: Registered protocol family 1
[ 6.842208] PCI: CLS 0 bytes, default 32
[ 6.843112] audit: initializing netlink socket (disabled)
[ 6.843161] type=2000 audit(0.080:1): initialized
[ 6.964316] VFS: Disk quotas dquot_6.5.2
[ 6.964714] Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[ 6.967905] JFFS2 version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[ 6.969749] aufs 3.1-20111107
[ 6.969779] msgmni has been set to 239
[ 6.971646] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 253)
[ 6.971668] io scheduler noop registered
[ 6.971681] io scheduler deadline registered
[ 6.971791] io scheduler cfq registered
[ 6.971887] io scheduler bfq registered (default)
[ 6.971993] mv_xor_shared mv_xor_shared.0: Marvell shared XOR driver
[ 6.972039] mv_xor_shared mv_xor_shared.1: Marvell shared XOR driver
[ 7.003067] mv_xor mv_xor.0: Marvell XOR: ( xor cpy )
[ 7.043066] mv_xor mv_xor.1: Marvell XOR: ( xor fill cpy )
[ 7.083060] mv_xor mv_xor.2: Marvell XOR: ( xor cpy )
[ 7.123059] mv_xor mv_xor.3: Marvell XOR: ( xor fill cpy )
[ 7.130148] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
[ 7.151068] serial8250.0: ttyS0 at MMIO 0xf1012000 (irq = 33) is a 16550A
[ 7.151200] console [ttyS0] enabled
[ 7.159961] brd: module loaded
[ 7.164278] loop: module loaded
[ 7.164712] sata_mv sata_mv.0: version 1.28
[ 7.164885] sata_mv sata_mv.0: slots 32 ports 2
[ 7.167347] scsi0 : sata_mv
[ 7.167921] scsi1 : sata_mv
[ 7.168242] ata1: SATA max UDMA/133 irq 21
[ 7.168259] ata2: SATA max UDMA/133 irq 21
[ 7.169246] ONFI flash detected
[ 7.169451] NAND device: Manufacturer ID: 0xad, Chip ID: 0xf1 (Hynix NAND 128MiB 3,3V 8-bit)
[ 7.169482] Scanning device for bad blocks
[ 7.171360] Bad eraseblock 30 at 0x0000003c0000
[ 7.177366] Bad eraseblock 123 at 0x000000f60000
[ 7.186607] Bad eraseblock 274 at 0x000002240000
[ 7.232291] Creating 5 MTD partitions on "orion_nand":
[ 7.232316] 0x000000000000-0x000000200000 : "u-boot"
[ 7.232850] 0x000000200000-0x000000500000 : "uImage"
[ 7.233373] 0x000000500000-0x000000800000 : "uImage2"
[ 7.233827] 0x000000800000-0x000001000000 : "failsafe"
[ 7.234235] 0x000001000000-0x000008000000 : "root"
[ 7.235538] m25p80 spi0.0: m25p05-nonjedec (64 Kbytes)
[ 7.236529] mv643xx_eth: MV-643xx 10/100/1000 ethernet driver version 1.4
[ 7.236659] mv643xx_eth smi: probed
[ 7.239456] mv643xx_eth_port mv643xx_eth_port.0: eth0: port 0 with MAC address 00:25:31:03:d2:f3
[ 7.239699] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 7.239767] orion-ehci orion-ehci.0: Marvell Orion EHCI
[ 7.239886] orion-ehci orion-ehci.0: new USB bus registered, assigned bus number 1
[ 7.263034] orion-ehci orion-ehci.0: irq 19, io mem 0xf1050000
[ 7.283010] orion-ehci orion-ehci.0: USB 2.0 started, EHCI 1.00
[ 7.283856] hub 1-0:1.0: USB hub found
[ 7.283889] hub 1-0:1.0: 1 port detected
[ 7.284616] Initializing USB Mass Storage driver...
[ 7.284748] usbcore: registered new interface driver usb-storage
[ 7.284762] USB Mass Storage support registered.
[ 7.284887] usbcore: registered new interface driver libusual
[ 7.285369] mousedev: PS/2 mouse device common for all mice
[ 7.603028] usb 1-1: new high speed USB device number 2 using orion-ehci
[ 7.683024] ata1: SATA link up 3.0 Gbps (SStatus 123 SControl F300)
[ 7.683840] ata1.15: Port Multiplier 1.1, 0x1095:0x3826 r23, 6 ports, feat 0x1/0x9
[ 7.691260] ata1.00: hard resetting link
[ 7.755275] scsi2 : usb-storage 1-1:1.0
[ 8.193323] ata1.01: hard resetting link
[ 8.293016] rtc-mv rtc-mv: internal RTC not ticking
[ 8.298125] sdhci: Secure Digital Host Controller Interface driver
[ 8.298139] sdhci: Copyright(c) Pierre Ossman
[ 8.298474] mmc0: mvsdio driver initialized, using GPIO 27 for card detection
[ 8.298536] sdhci-pltfm: SDHCI platform and OF driver helper
[ 8.298746] Registered led device: status:green:health
[ 8.298901] Registered led device: status:red:fault
[ 8.299215] usbcore: registered new interface driver r8712u
[ 8.300556] GRE over IPv4 demultiplexor driver
[ 8.300760] TCP cubic registered
[ 8.300776] NET: Registered protocol family 17
[ 8.300894] lib80211: common routines for IEEE802.11 drivers
[ 8.300910] lib80211_crypt: registered algorithm 'NULL'
[ 8.300922] Registering the dns_resolver key type
[ 8.301003] Gating clock of unused units
[ 8.301016] before: 0x00c7c1dd
[ 8.301027] after: 0x00c7c1d9
[ 8.301774] registered taskstats version 1
[ 8.703318] ata1.02: hard resetting link
[ 8.754176] scsi 2:0:0:0: Direct-Access General USB Flash Disk 1.00 PQ: 0 ANSI: 2
[ 8.755359] sd 2:0:0:0: Attached scsi generic sg0 type 0
[ 8.756236] sd 2:0:0:0: [sda] 7831552 512-byte logical blocks: (4.00 GB/3.73 GiB)
[ 8.756816] sd 2:0:0:0: [sda] Write Protect is off
[ 8.756837] sd 2:0:0:0: [sda] Mode Sense: 03 00 00 00
[ 8.757317] sd 2:0:0:0: [sda] No Caching mode page present
[ 8.762791] sd 2:0:0:0: [sda] Assuming drive cache: write through
[ 8.785822] sd 2:0:0:0: [sda] No Caching mode page present
[ 8.791294] sd 2:0:0:0: [sda] Assuming drive cache: write through
[ 8.814309] sda: sda1
[ 8.817445] sd 2:0:0:0: [sda] No Caching mode page present
[ 8.822916] sd 2:0:0:0: [sda] Assuming drive cache: write through
[ 8.843039] sd 2:0:0:0: [sda] Attached SCSI removable disk
[ 9.213329] ata1.03: hard resetting link
[ 9.723326] ata1.04: hard resetting link
[ 10.073898] ata1.05: hard resetting link
[ 11.322778] UKSM: relative memcmp_cost = 2068 hash=3260868263 cmp_ret=0.
[ 11.334676] console [netcon0] enabled
[ 11.334689] netconsole: network logging started
[ 11.335231] input: gpio-keys as /devices/platform/gpio-keys/input/input0
[ 11.335641] drivers/rtc/hctosys.c: unable to open rtc device (rtc0)
[ 13.663037] ata1.15: qc timeout (cmd 0xe4)
[ 13.663057] ata1.05: failed to read SCR 0 (Emask=0x5)
[ 13.663076] ata1.05: failed to read SCR 0 (Emask=0x40)
[ 16.703024] ata1.15: qc timeout (cmd 0xe4)
[ 16.703042] ata1.05: failed to read SCR 0 (Emask=0x5)
[ 16.703059] ata1.05: failed to read SCR 0 (Emask=0x40)
[ 16.703094] ata1.00: failed to IDENTIFY (I/O error, err_mask=0x40)
[ 16.703120] ata1.15: hard resetting link
[ 17.213028] ata1.15: SATA link up 3.0 Gbps (SStatus 123 SControl F300)
[ 17.213892] ata1.00: hard resetting link
[ 17.723338] ata1.01: hard resetting link
[ 18.233330] ata1.02: hard resetting link
[ 18.743306] ata1.03: hard resetting link
[ 19.293068] ata1.00: ATA-9: WDC WD30EFRX-68AX9N0, 80.00A80, max UDMA/133
[ 19.293089] ata1.00: 5860533168 sectors, multi 0: LBA48 NCQ (depth 31/32)
[ 19.333091] ata1.00: configured for UDMA/133
[ 19.373062] ata1.01: ATA-9: WDC WD30EFRX-68AX9N0, 80.00A80, max UDMA/133
[ 19.373081] ata1.01: 5860533168 sectors, multi 0: LBA48 NCQ (depth 31/32)
[ 19.413069] ata1.01: configured for UDMA/133
[ 19.433270] ata1.02: ATA-9: WDC WD30EFRX-68AX9N0, 80.00A80, max UDMA/133
[ 19.433290] ata1.02: 5860533168 sectors, multi 0: LBA48 NCQ (depth 31/32)
[ 19.473071] ata1.02: configured for UDMA/133
[ 19.493246] ata1.03: ATA-9: WDC WD30EFRX-68EUZN0, 80.00A80, max UDMA/133
[ 19.493266] ata1.03: 5860533168 sectors, multi 0: LBA48 NCQ (depth 31/32)
[ 19.513256] ata1.03: configured for UDMA/133
[ 19.513472] ata1: EH complete
[ 19.533449] scsi 0:0:0:0: Direct-Access ATA WDC WD30EFRX-68A 80.0 PQ: 0 ANSI: 5
[ 19.534485] sd 0:0:0:0: [sdb] 5860533168 512-byte logical blocks: (3.00 TB/2.72 TiB)
[ 19.534506] sd 0:0:0:0: [sdb] 4096-byte physical blocks
[ 19.534868] sd 0:0:0:0: [sdb] Write Protect is off
[ 19.534889] sd 0:0:0:0: [sdb] Mode Sense: 00 3a 00 00
[ 19.535048] sd 0:0:0:0: [sdb] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 19.535836] sd 0:0:0:0: Attached scsi generic sg1 type 0
[ 19.537174] scsi 0:1:0:0: Direct-Access ATA WDC WD30EFRX-68A 80.0 PQ: 0 ANSI: 5
[ 19.538215] sd 0:1:0:0: Attached scsi generic sg2 type 0
[ 19.538804] scsi 0:2:0:0: Direct-Access ATA WDC WD30EFRX-68A 80.0 PQ: 0 ANSI: 5
[ 19.539693] sd 0:2:0:0: Attached scsi generic sg3 type 0
[ 19.540277] scsi 0:3:0:0: Direct-Access ATA WDC WD30EFRX-68E 80.0 PQ: 0 ANSI: 5
[ 19.541257] sd 0:1:0:0: [sdc] 5860533168 512-byte logical blocks: (3.00 TB/2.72 TiB)
[ 19.541277] sd 0:1:0:0: [sdc] 4096-byte physical blocks
[ 19.541637] sd 0:1:0:0: [sdc] Write Protect is off
[ 19.541658] sd 0:1:0:0: [sdc] Mode Sense: 00 3a 00 00
[ 19.541816] sd 0:1:0:0: [sdc] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 19.543405] sd 0:3:0:0: Attached scsi generic sg4 type 0
[ 19.544034] sd 0:2:0:0: [sdd] 5860533168 512-byte logical blocks: (3.00 TB/2.72 TiB)
[ 19.544054] sd 0:2:0:0: [sdd] 4096-byte physical blocks
[ 19.544382] sd 0:2:0:0: [sdd] Write Protect is off
[ 19.544402] sd 0:2:0:0: [sdd] Mode Sense: 00 3a 00 00
[ 19.544545] sd 0:2:0:0: [sdd] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 19.545291] sd 0:3:0:0: [sde] 5860533168 512-byte logical blocks: (3.00 TB/2.72 TiB)
[ 19.545311] sd 0:3:0:0: [sde] 4096-byte physical blocks
[ 19.545633] sd 0:3:0:0: [sde] Write Protect is off
[ 19.545653] sd 0:3:0:0: [sde] Mode Sense: 00 3a 00 00
[ 19.545795] sd 0:3:0:0: [sde] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 19.564732] sdc: unknown partition table
[ 19.565774] sdb: unknown partition table
[ 19.567426] sd 0:1:0:0: [sdc] Attached SCSI disk
[ 19.567471] sd 0:0:0:0: [sdb] Attached SCSI disk
[ 19.573570] sdd: unknown partition table
[ 19.574659] sd 0:2:0:0: [sdd] Attached SCSI disk
[ 19.893030] ata2: SATA link down (SStatus 0 SControl F300)
[ 20.284424] sde: unknown partition table
[ 20.285468] sd 0:3:0:0: [sde] Attached SCSI disk
[ 20.287453] EXT4-fs (sda1): mounting ext3 file system using the ext4 subsystem
[ 20.300824] EXT4-fs (sda1): mounted filesystem with ordered data mode. Opts: (null)
[ 20.300879] VFS: Mounted root (ext3 filesystem) on device 8:1.
[ 20.306239] devtmpfs: mounted
[ 20.307112] Freeing init memory: 172K
[ 20.883244] systemd[1]: systemd 208 running in system mode. (+PAM -LIBWRAP -AUDIT -SELINUX -IMA -SYSVINIT +LIBCRYPTSETUP +GCRYPT +ACL +XZ)
[ 20.985838] systemd[1]: Inserted module 'autofs4'
[ 21.053081] NET: Registered protocol family 10
[ 21.058409] systemd[1]: Inserted module 'ipv6'
[ 21.060430] systemd[1]: Set hostname to <alarm>.
[ 21.383946] systemd[1]: Cannot add dependency job for unit display-manager.service, ignoring: Unit display-manager.service failed to load: No such file or directory.
[ 21.385795] systemd[1]: Expecting device dev-ttyS0.device...
[ 21.403208] systemd[1]: Starting Forward Password Requests to Wall Directory Watch.
[ 21.403698] systemd[1]: Started Forward Password Requests to Wall Directory Watch.
[ 21.403859] systemd[1]: Expecting device sys-subsystem-net-devices-eth0.device...
[ 21.423169] systemd[1]: Starting Network is Online.
[ 21.443130] systemd[1]: Reached target Network is Online.
[ 21.443265] systemd[1]: Starting LVM2 metadata daemon socket.
[ 21.463140] systemd[1]: Listening on LVM2 metadata daemon socket.
[ 21.463266] systemd[1]: Starting Device-mapper event daemon FIFOs.
[ 21.483131] systemd[1]: Listening on Device-mapper event daemon FIFOs.
[ 21.483253] systemd[1]: Starting /dev/initctl Compatibility Named Pipe.
[ 21.503128] systemd[1]: Listening on /dev/initctl Compatibility Named Pipe.
[ 21.503248] systemd[1]: Starting Delayed Shutdown Socket.
[ 21.523131] systemd[1]: Listening on Delayed Shutdown Socket.
[ 21.523264] systemd[1]: Starting Encrypted Volumes.
[ 21.543154] systemd[1]: Reached target Encrypted Volumes.
[ 21.543331] systemd[1]: Starting Dispatch Password Requests to Console Directory Watch.
[ 21.543704] systemd[1]: Started Dispatch Password Requests to Console Directory Watch.
[ 21.543822] systemd[1]: Starting Paths.
[ 21.563138] systemd[1]: Reached target Paths.
[ 21.563290] systemd[1]: Starting Journal Socket.
[ 21.583139] systemd[1]: Listening on Journal Socket.
[ 21.583388] systemd[1]: Mounting POSIX Message Queue File System...
[ 21.623703] systemd[1]: Mounted Huge Pages File System.
[ 21.623923] systemd[1]: Mounting Debug File System...
[ 21.666384] systemd[1]: Starting Apply Kernel Variables...
[ 21.904657] systemd[1]: Starting Create list of required static device nodes for the current kernel...
[ 21.987970] systemd[1]: Started Load Kernel Modules.
[ 21.988304] systemd[1]: Mounted Configuration File System.
[ 21.988501] systemd[1]: Mounted FUSE Control File System.
[ 21.988707] systemd[1]: Starting Setup Virtual Console...
[ 22.124060] systemd[1]: Starting Journal Service...
[ 22.283746] systemd[1]: Started Journal Service.
[ 22.605829] systemd-journald[62]: Vacuuming done, freed 0 bytes
[ 24.139310] Adding 131068k swap on /swapfile. Priority:-1 extents:15 across:2082668k
[ 24.437806] systemd-udevd[86]: starting version 208
[ 24.921672] usbcore: registered new interface driver uas
[ 25.440108] md: bind<sde>
[ 25.465215] md: bind<sdc>
[ 25.500017] md: bind<sdd>
[ 25.542763] md: bind<sdb>
[ 25.885594] raid6: int32x1 57 MB/s
[ 26.053633] raid6: int32x2 80 MB/s
[ 26.224170] raid6: int32x4 83 MB/s
[ 26.394099] raid6: int32x8 83 MB/s
[ 26.394114] raid6: using algorithm int32x8 (83 MB/s)
[ 26.399568] async_tx: api initialized (async)
[ 26.403401] xor: measuring software checksum speed
[ 26.453001] arm4regs : 726.800 MB/sec
[ 26.503006] 8regs : 436.000 MB/sec
[ 26.553002] 32regs : 603.600 MB/sec
[ 26.553017] xor: using function: arm4regs (726.800 MB/sec)
[ 26.578665] md: raid6 personality registered for level 6
[ 26.578684] md: raid5 personality registered for level 5
[ 26.578696] md: raid4 personality registered for level 4
[ 26.579927] bio: create slab <bio-1> at 1
[ 26.579987] md/raid:md0: device sdb operational as raid disk 0
[ 26.580004] md/raid:md0: device sdd operational as raid disk 2
[ 26.580019] md/raid:md0: device sdc operational as raid disk 1
[ 26.580034] md/raid:md0: device sde operational as raid disk 3
[ 26.582020] md/raid:md0: allocated 4228kB
[ 26.583875] md/raid:md0: raid level 5 active with 4 out of 4 devices, algorithm 2
[ 26.583892] RAID conf printout:
[ 26.583904] --- level:5 rd:4 wd:4
[ 26.583917] disk 0, o:1, dev:sdb
[ 26.583929] disk 1, o:1, dev:sdc
[ 26.583940] disk 2, o:1, dev:sdd
[ 26.583952] disk 3, o:1, dev:sde
[ 26.584295] created bitmap (22 pages) for device md0
[ 26.593814] md0: bitmap initialized from disk: read 2/2 pages, set 0 of 44711 bits
[ 26.683135] md0: detected capacity change from 0 to 9001374842880
[ 26.699867] md0: unknown partition table
[ 30.544660] EXT4-fs (md0): mounted filesystem with ordered data mode. Opts: (null)
[ 30.990441] systemd-journald[62]: Received request to flush runtime journal from PID 1
[ 31.099358] systemd-journald[62]: File /var/log/journal/e4b5dad211aa4a41920893d218a05e68/system.journal corrupted or uncleanly shut down, renaming and replacing.
[ 33.324496] ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 36.562554] mv643xx_eth_port mv643xx_eth_port.0: eth0: link up, 1000 Mb/s, full duplex, flow control disabled
[ 36.562709] ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 47.343031] eth0: no IPv6 routers present
[ 80.425463] FS-Cache: Netfs 'cifs' registered for caching
[ 80.702370] CIFS VFS: default security mechanism requested. The default security mechanism will be upgraded from ntlm to ntlmv2 in kernel release 3.2
')
With eSATA box on port 1
$this->bbcode_second_pass_code('', '
[ 0.000000] Initializing cgroup subsys cpuset
[ 0.000000] Initializing cgroup subsys cpu
[ 0.000000] Linux version 3.1.10-28-ARCH (root@alarm) (gcc version 4.7.2 (GCC) ) #1 PREEMPT Mon Dec 16 12:56:52 PST 2013
[ 0.000000] CPU: Feroceon 88FR131 [56251311] revision 1 (ARMv5TE), cr=00053977
[ 0.000000] CPU: VIVT data cache, VIVT instruction cache
[ 0.000000] Machine: Pogoplug V4
[ 0.000000] Memory policy: ECC disabled, Data cache writeback
[ 0.000000] On node 0 totalpages: 32768
[ 0.000000] free_area_init_node: node 0, pgdat c05a7660, node_mem_map c0678000
[ 0.000000] Normal zone: 256 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 32512 pages, LIFO batch:7
[ 0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[ 0.000000] pcpu-alloc: [0] 0
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 32512
[ 0.000000] Kernel command line: console=ttyS0,115200 root=/dev/sda1 rootwait rootfstype=ext3
[ 0.000000] PID hash table entries: 512 (order: -1, 2048 bytes)
[ 0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
[ 0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
[ 0.000000] allocated 524288 bytes of page_cgroup
[ 0.000000] please try 'cgroup_disable=memory' option if you don't want memory cgroups
[ 0.000000] Memory: 128MB = 128MB total
[ 0.000000] Memory: 122776k/122776k available, 8296k reserved, 0K highmem
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB)
[ 0.000000] fixmap : 0xfff00000 - 0xfffe0000 ( 896 kB)
[ 0.000000] DMA : 0xffc00000 - 0xffe00000 ( 2 MB)
[ 0.000000] vmalloc : 0xc8800000 - 0xfe800000 ( 864 MB)
[ 0.000000] lowmem : 0xc0000000 - 0xc8000000 ( 128 MB)
[ 0.000000] modules : 0xbf000000 - 0xc0000000 ( 16 MB)
[ 0.000000] .text : 0xc0008000 - 0xc05433ec (5357 kB)
[ 0.000000] .init : 0xc0544000 - 0xc056f000 ( 172 kB)
[ 0.000000] .data : 0xc0570000 - 0xc05a9e50 ( 232 kB)
[ 0.000000] .bss : 0xc05a9e74 - 0xc06771cc ( 821 kB)
[ 0.000000] SLUB: Genslabs=13, HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[ 0.000000] Preemptible hierarchical RCU implementation.
[ 0.000000] NR_IRQS:114
[ 0.000000] sched_clock: 32 bits at 166MHz, resolution 5ns, wraps every 25769ms
[ 0.000000] Console: colour dummy device 80x30
[ 6.697955] Calibrating delay loop... 795.44 BogoMIPS (lpj=3977216)
[ 6.737833] pid_max: default: 32768 minimum: 301
[ 6.738022] Security Framework initialized
[ 6.738057] AppArmor: AppArmor disabled by boot time parameter
[ 6.738153] Mount-cache hash table entries: 512
[ 6.738726] Initializing cgroup subsys cpuacct
[ 6.738763] Initializing cgroup subsys memory
[ 6.738816] Initializing cgroup subsys devices
[ 6.738834] Initializing cgroup subsys freezer
[ 6.738849] Initializing cgroup subsys net_cls
[ 6.738862] Initializing cgroup subsys blkio
[ 6.738897] Initializing cgroup subsys perf_event
[ 6.738925] Initializing cgroup subsys bfqio
[ 6.739061] CPU: Testing write buffer coherency: ok
[ 6.740916] devtmpfs: initialized
[ 6.743617] NET: Registered protocol family 16
[ 6.744574] Kirkwood: MV88F6281-A1, TCLK=166666667.
[ 6.744595] Feroceon L2: Enabling L2
[ 6.744642] Feroceon L2: Cache support initialised.
[ 6.745382] initial MPP regs: 21111111 03303311 00551100 00000000 00000000 00000000 00000000
[ 6.745424] final MPP regs: 21111111 11113311 00551111 00000000 00000000 00000000 00000000
[ 6.746440] Kirkwood PCIe port 0:
[ 6.746451] link down, ignoring
[ 6.753192] bio: create slab <bio-0> at 0
[ 6.753691] vgaarb: loaded
[ 6.754090] SCSI subsystem initialized
[ 6.754309] libata version 3.00 loaded.
[ 6.754629] usbcore: registered new interface driver usbfs
[ 6.754758] usbcore: registered new interface driver hub
[ 6.754902] usbcore: registered new device driver usb
[ 6.755708] Switching to clocksource orion_clocksource
[ 6.757824] Switched to NOHz mode on CPU #0
[ 6.768941] FS-Cache: Loaded
[ 6.782875] NET: Registered protocol family 2
[ 6.783221] IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 6.784269] TCP established hash table entries: 4096 (order: 3, 32768 bytes)
[ 6.784417] TCP bind hash table entries: 4096 (order: 2, 16384 bytes)
[ 6.784496] TCP: Hash tables configured (established 4096 bind 4096)
[ 6.784511] TCP reno registered
[ 6.784530] UDP hash table entries: 256 (order: 0, 4096 bytes)
[ 6.784564] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[ 6.784901] NET: Registered protocol family 1
[ 6.784952] PCI: CLS 0 bytes, default 32
[ 6.785857] audit: initializing netlink socket (disabled)
[ 6.785908] type=2000 audit(0.080:1): initialized
[ 6.907131] VFS: Disk quotas dquot_6.5.2
[ 6.907528] Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[ 6.910720] JFFS2 version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[ 6.912564] aufs 3.1-20111107
[ 6.912594] msgmni has been set to 239
[ 6.914466] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 253)
[ 6.914487] io scheduler noop registered
[ 6.914499] io scheduler deadline registered
[ 6.914608] io scheduler cfq registered
[ 6.914706] io scheduler bfq registered (default)
[ 6.914809] mv_xor_shared mv_xor_shared.0: Marvell shared XOR driver
[ 6.914854] mv_xor_shared mv_xor_shared.1: Marvell shared XOR driver
[ 6.945815] mv_xor mv_xor.0: Marvell XOR: ( xor cpy )
[ 6.985816] mv_xor mv_xor.1: Marvell XOR: ( xor fill cpy )
[ 7.025809] mv_xor mv_xor.2: Marvell XOR: ( xor cpy )
[ 7.065810] mv_xor mv_xor.3: Marvell XOR: ( xor fill cpy )
[ 7.072915] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
[ 7.093838] serial8250.0: ttyS0 at MMIO 0xf1012000 (irq = 33) is a 16550A
[ 7.093971] console [ttyS0] enabled
[ 7.102743] brd: module loaded
[ 7.107069] loop: module loaded
[ 7.107506] sata_mv sata_mv.0: version 1.28
[ 7.107679] sata_mv sata_mv.0: slots 32 ports 2
[ 7.110144] scsi0 : sata_mv
[ 7.110714] scsi1 : sata_mv
[ 7.111036] ata1: SATA max UDMA/133 irq 21
[ 7.111052] ata2: SATA max UDMA/133 irq 21
[ 7.112039] ONFI flash detected
[ 7.112245] NAND device: Manufacturer ID: 0xad, Chip ID: 0xf1 (Hynix NAND 128MiB 3,3V 8-bit)
[ 7.112274] Scanning device for bad blocks
[ 7.114153] Bad eraseblock 30 at 0x0000003c0000
[ 7.120156] Bad eraseblock 123 at 0x000000f60000
[ 7.129400] Bad eraseblock 274 at 0x000002240000
[ 7.175087] Creating 5 MTD partitions on "orion_nand":
[ 7.175111] 0x000000000000-0x000000200000 : "u-boot"
[ 7.175648] 0x000000200000-0x000000500000 : "uImage"
[ 7.176171] 0x000000500000-0x000000800000 : "uImage2"
[ 7.176623] 0x000000800000-0x000001000000 : "failsafe"
[ 7.177030] 0x000001000000-0x000008000000 : "root"
[ 7.178332] m25p80 spi0.0: m25p05-nonjedec (64 Kbytes)
[ 7.179321] mv643xx_eth: MV-643xx 10/100/1000 ethernet driver version 1.4
[ 7.179450] mv643xx_eth smi: probed
[ 7.182307] mv643xx_eth_port mv643xx_eth_port.0: eth0: port 0 with MAC address 00:25:31:03:d2:f3
[ 7.182549] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 7.182617] orion-ehci orion-ehci.0: Marvell Orion EHCI
[ 7.182735] orion-ehci orion-ehci.0: new USB bus registered, assigned bus number 1
[ 7.205782] orion-ehci orion-ehci.0: irq 19, io mem 0xf1050000
[ 7.225759] orion-ehci orion-ehci.0: USB 2.0 started, EHCI 1.00
[ 7.226602] hub 1-0:1.0: USB hub found
[ 7.226633] hub 1-0:1.0: 1 port detected
[ 7.227361] Initializing USB Mass Storage driver...
[ 7.227494] usbcore: registered new interface driver usb-storage
[ 7.227508] USB Mass Storage support registered.
[ 7.227634] usbcore: registered new interface driver libusual
[ 7.228115] mousedev: PS/2 mouse device common for all mice
[ 7.465781] ata1: SATA link down (SStatus 0 SControl F300)
[ 7.545780] usb 1-1: new high speed USB device number 2 using orion-ehci
[ 7.697996] scsi2 : usb-storage 1-1:1.0
[ 7.975781] ata2: SATA link up 3.0 Gbps (SStatus 123 SControl F300)
[ 7.976604] ata2.15: Port Multiplier 1.1, 0x1095:0x3826 r23, 6 ports, feat 0x1/0x9
[ 7.984022] ata2.00: hard resetting link
[ 8.235760] rtc-mv rtc-mv: internal RTC not ticking
[ 8.240873] sdhci: Secure Digital Host Controller Interface driver
[ 8.240887] sdhci: Copyright(c) Pierre Ossman
[ 8.241228] mmc0: mvsdio driver initialized, using GPIO 27 for card detection
[ 8.241290] sdhci-pltfm: SDHCI platform and OF driver helper
[ 8.241502] Registered led device: status:green:health
[ 8.241657] Registered led device: status:red:fault
[ 8.241973] usbcore: registered new interface driver r8712u
[ 8.243315] GRE over IPv4 demultiplexor driver
[ 8.243521] TCP cubic registered
[ 8.243537] NET: Registered protocol family 17
[ 8.243657] lib80211: common routines for IEEE802.11 drivers
[ 8.243672] lib80211_crypt: registered algorithm 'NULL'
[ 8.243685] Registering the dns_resolver key type
[ 8.243733] Gating clock of unused units
[ 8.243746] before: 0x00c7c1dd
[ 8.243757] after: 0x00c7c1d9
[ 8.244522] registered taskstats version 1
[ 8.486075] ata2.01: hard resetting link
[ 8.696931] scsi 2:0:0:0: Direct-Access General USB Flash Disk 1.00 PQ: 0 ANSI: 2
[ 8.698142] sd 2:0:0:0: Attached scsi generic sg0 type 0
[ 8.698843] sd 2:0:0:0: [sda] 7831552 512-byte logical blocks: (4.00 GB/3.73 GiB)
[ 8.699337] sd 2:0:0:0: [sda] Write Protect is off
[ 8.699357] sd 2:0:0:0: [sda] Mode Sense: 03 00 00 00
[ 8.699819] sd 2:0:0:0: [sda] No Caching mode page present
[ 8.705285] sd 2:0:0:0: [sda] Assuming drive cache: write through
[ 8.728570] sd 2:0:0:0: [sda] No Caching mode page present
[ 8.734038] sd 2:0:0:0: [sda] Assuming drive cache: write through
[ 8.757177] sda: sda1
[ 8.760210] sd 2:0:0:0: [sda] No Caching mode page present
[ 8.765678] sd 2:0:0:0: [sda] Assuming drive cache: write through
[ 8.785787] sd 2:0:0:0: [sda] Attached SCSI removable disk
[ 8.996093] ata2.02: hard resetting link
[ 9.506059] ata2.03: hard resetting link
[ 10.016082] ata2.04: hard resetting link
[ 10.366632] ata2.05: hard resetting link
[ 11.266385] UKSM: relative memcmp_cost = 2078 hash=3260868263 cmp_ret=0.
[ 11.278199] console [netcon0] enabled
[ 11.278212] netconsole: network logging started
[ 11.278757] input: gpio-keys as /devices/platform/gpio-keys/input/input0
[ 11.279231] drivers/rtc/hctosys.c: unable to open rtc device (rtc0)
[ 13.955786] ata2.15: qc timeout (cmd 0xe4)
[ 13.955806] ata2.05: failed to read SCR 0 (Emask=0x5)
[ 13.955825] ata2.05: failed to read SCR 0 (Emask=0x40)
[ 16.995775] ata2.15: qc timeout (cmd 0xe4)
[ 16.995793] ata2.05: failed to read SCR 0 (Emask=0x5)
[ 16.995811] ata2.05: failed to read SCR 0 (Emask=0x40)
[ 16.995847] ata2.00: failed to IDENTIFY (I/O error, err_mask=0x40)
[ 16.995872] ata2.15: hard resetting link
[ 17.505771] ata2.15: SATA link up 3.0 Gbps (SStatus 123 SControl F300)
[ 17.506629] ata2.00: hard resetting link
[ 18.016081] ata2.01: hard resetting link
[ 18.526061] ata2.02: hard resetting link
[ 19.036062] ata2.03: hard resetting link
[ 19.585816] ata2.00: ATA-9: WDC WD30EFRX-68AX9N0, 80.00A80, max UDMA/133
[ 19.585836] ata2.00: 5860533168 sectors, multi 0: LBA48 NCQ (depth 31/32)
[ 19.625822] ata2.00: configured for UDMA/133
[ 19.665811] ata2.01: ATA-9: WDC WD30EFRX-68AX9N0, 80.00A80, max UDMA/133
[ 19.665831] ata2.01: 5860533168 sectors, multi 0: LBA48 NCQ (depth 31/32)
[ 19.705812] ata2.01: configured for UDMA/133
[ 19.745810] ata2.02: ATA-9: WDC WD30EFRX-68AX9N0, 80.00A80, max UDMA/133
[ 19.745830] ata2.02: 5860533168 sectors, multi 0: LBA48 NCQ (depth 31/32)
[ 19.785819] ata2.02: configured for UDMA/133
[ 19.805988] ata2.03: ATA-9: WDC WD30EFRX-68EUZN0, 80.00A80, max UDMA/133
[ 19.806008] ata2.03: 5860533168 sectors, multi 0: LBA48 NCQ (depth 31/32)
[ 19.826007] ata2.03: configured for UDMA/133
[ 19.826221] ata2: EH complete
[ 19.846184] scsi 1:0:0:0: Direct-Access ATA WDC WD30EFRX-68A 80.0 PQ: 0 ANSI: 5
[ 19.847220] sd 1:0:0:0: [sdb] 5860533168 512-byte logical blocks: (3.00 TB/2.72 TiB)
[ 19.847240] sd 1:0:0:0: [sdb] 4096-byte physical blocks
[ 19.847603] sd 1:0:0:0: [sdb] Write Protect is off
[ 19.847623] sd 1:0:0:0: [sdb] Mode Sense: 00 3a 00 00
[ 19.847781] sd 1:0:0:0: [sdb] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 19.848651] sd 1:0:0:0: Attached scsi generic sg1 type 0
[ 19.849907] scsi 1:1:0:0: Direct-Access ATA WDC WD30EFRX-68A 80.0 PQ: 0 ANSI: 5
[ 19.850613] sd 1:1:0:0: [sdc] 5860533168 512-byte logical blocks: (3.00 TB/2.72 TiB)
[ 19.850633] sd 1:1:0:0: [sdc] 4096-byte physical blocks
[ 19.850987] sd 1:1:0:0: [sdc] Write Protect is off
[ 19.851007] sd 1:1:0:0: [sdc] Mode Sense: 00 3a 00 00
[ 19.851165] sd 1:1:0:0: [sdc] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 19.852872] sd 1:1:0:0: Attached scsi generic sg2 type 0
[ 19.853464] scsi 1:2:0:0: Direct-Access ATA WDC WD30EFRX-68A 80.0 PQ: 0 ANSI: 5
[ 19.854517] sd 1:2:0:0: Attached scsi generic sg3 type 0
[ 19.855090] scsi 1:3:0:0: Direct-Access ATA WDC WD30EFRX-68E 80.0 PQ: 0 ANSI: 5
[ 19.856060] sd 1:3:0:0: Attached scsi generic sg4 type 0
[ 19.856584] sd 1:2:0:0: [sdd] 5860533168 512-byte logical blocks: (3.00 TB/2.72 TiB)
[ 19.856603] sd 1:2:0:0: [sdd] 4096-byte physical blocks
[ 19.856966] sd 1:2:0:0: [sdd] Write Protect is off
[ 19.856987] sd 1:2:0:0: [sdd] Mode Sense: 00 3a 00 00
[ 19.857145] sd 1:2:0:0: [sdd] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 19.858718] sd 1:3:0:0: [sde] 5860533168 512-byte logical blocks: (3.00 TB/2.72 TiB)
[ 19.858737] sd 1:3:0:0: [sde] 4096-byte physical blocks
[ 19.859059] sd 1:3:0:0: [sde] Write Protect is off
[ 19.859080] sd 1:3:0:0: [sde] Mode Sense: 00 3a 00 00
[ 19.859224] sd 1:3:0:0: [sde] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[ 19.873738] sdb: unknown partition table
[ 19.874869] sd 1:0:0:0: [sdb] Attached SCSI disk
[ 19.881292] sdc: unknown partition table
[ 19.883271] sdd: unknown partition table
[ 19.884482] sd 1:2:0:0: [sdd] Attached SCSI disk
[ 19.884523] sd 1:1:0:0: [sdc] Attached SCSI disk
[ 20.592812] sde: unknown partition table
[ 20.593845] sd 1:3:0:0: [sde] Attached SCSI disk
[ 20.595874] EXT4-fs (sda1): mounting ext3 file system using the ext4 subsystem
[ 32.215492] EXT4-fs (sda1): recovery complete
[ 32.217839] EXT4-fs (sda1): mounted filesystem with ordered data mode. Opts: (null)
[ 32.217904] VFS: Mounted root (ext3 filesystem) on device 8:1.
[ 32.222379] devtmpfs: mounted
[ 32.223254] Freeing init memory: 172K
[ 32.735997] systemd[1]: systemd 208 running in system mode. (+PAM -LIBWRAP -AUDIT -SELINUX -IMA -SYSVINIT +LIBCRYPTSETUP +GCRYPT +ACL +XZ)
[ 32.835633] systemd[1]: Inserted module 'autofs4'
[ 32.912375] NET: Registered protocol family 10
[ 32.917787] systemd[1]: Inserted module 'ipv6'
[ 32.919820] systemd[1]: Set hostname to <alarm>.
[ 33.240125] systemd[1]: Cannot add dependency job for unit display-manager.service, ignoring: Unit display-manager.service failed to load: No such file or directory.
[ 33.241958] systemd[1]: Expecting device dev-ttyS0.device...
[ 33.265936] systemd[1]: Starting Forward Password Requests to Wall Directory Watch.
[ 33.266429] systemd[1]: Started Forward Password Requests to Wall Directory Watch.
[ 33.266589] systemd[1]: Expecting device sys-subsystem-net-devices-eth0.device...
[ 33.285914] systemd[1]: Starting Network is Online.
[ 33.305878] systemd[1]: Reached target Network is Online.
[ 33.306013] systemd[1]: Starting LVM2 metadata daemon socket.
[ 33.325884] systemd[1]: Listening on LVM2 metadata daemon socket.
[ 33.326009] systemd[1]: Starting Device-mapper event daemon FIFOs.
[ 33.345879] systemd[1]: Listening on Device-mapper event daemon FIFOs.
[ 33.346001] systemd[1]: Starting /dev/initctl Compatibility Named Pipe.
[ 33.365877] systemd[1]: Listening on /dev/initctl Compatibility Named Pipe.
[ 33.365995] systemd[1]: Starting Delayed Shutdown Socket.
[ 33.385878] systemd[1]: Listening on Delayed Shutdown Socket.
[ 33.386006] systemd[1]: Starting Encrypted Volumes.
[ 33.405901] systemd[1]: Reached target Encrypted Volumes.
[ 33.406081] systemd[1]: Starting Dispatch Password Requests to Console Directory Watch.
[ 33.406462] systemd[1]: Started Dispatch Password Requests to Console Directory Watch.
[ 33.406582] systemd[1]: Starting Paths.
[ 33.425888] systemd[1]: Reached target Paths.
[ 33.426040] systemd[1]: Starting Journal Socket.
[ 33.445886] systemd[1]: Listening on Journal Socket.
[ 33.446135] systemd[1]: Mounting POSIX Message Queue File System...
[ 33.486433] systemd[1]: Mounted Huge Pages File System.
[ 33.486651] systemd[1]: Mounting Debug File System...
[ 33.529128] systemd[1]: Starting Apply Kernel Variables...
[ 33.767404] systemd[1]: Starting Create list of required static device nodes for the current kernel...
[ 33.850731] systemd[1]: Started Load Kernel Modules.
[ 33.851061] systemd[1]: Mounted Configuration File System.
[ 33.851258] systemd[1]: Mounted FUSE Control File System.
[ 33.851462] systemd[1]: Starting Setup Virtual Console...
[ 33.986821] systemd[1]: Starting Journal Service...
[ 34.146490] systemd[1]: Started Journal Service.
[ 34.448226] systemd-journald[63]: Vacuuming done, freed 0 bytes
[ 36.061086] Adding 131068k swap on /swapfile. Priority:-1 extents:15 across:2082668k
[ 36.356722] systemd-udevd[87]: starting version 208
[ 36.801059] usbcore: registered new interface driver uas
[ 37.316659] md: bind<sdc>
[ 37.342180] md: bind<sdd>
[ 37.375645] md: bind<sdb>
[ 37.685418] md: bind<sde>
[ 37.876698] raid6: int32x1 57 MB/s
[ 38.046618] raid6: int32x2 80 MB/s
[ 38.216051] raid6: int32x4 82 MB/s
[ 38.387071] raid6: int32x8 83 MB/s
[ 38.387086] raid6: using algorithm int32x8 (83 MB/s)
[ 39.090793] async_tx: api initialized (async)
[ 39.094880] xor: measuring software checksum speed
[ 39.135752] arm4regs : 726.000 MB/sec
[ 39.186276] 8regs : 436.000 MB/sec
[ 39.235756] 32regs : 598.400 MB/sec
[ 39.235771] xor: using function: arm4regs (726.000 MB/sec)
[ 39.262722] md: raid6 personality registered for level 6
[ 39.262741] md: raid5 personality registered for level 5
[ 39.262754] md: raid4 personality registered for level 4
[ 39.263945] bio: create slab <bio-1> at 1
[ 39.264008] md/raid:md0: device sde operational as raid disk 3
[ 39.264024] md/raid:md0: device sdb operational as raid disk 0
[ 39.264040] md/raid:md0: device sdd operational as raid disk 2
[ 39.264054] md/raid:md0: device sdc operational as raid disk 1
[ 39.268018] md/raid:md0: allocated 4228kB
[ 39.268195] md/raid:md0: raid level 5 active with 4 out of 4 devices, algorithm 2
[ 39.268211] RAID conf printout:
[ 39.268222] --- level:5 rd:4 wd:4
[ 39.268235] disk 0, o:1, dev:sdb
[ 39.268247] disk 1, o:1, dev:sdc
[ 39.268259] disk 2, o:1, dev:sdd
[ 39.268270] disk 3, o:1, dev:sde
[ 39.268618] created bitmap (22 pages) for device md0
[ 39.278152] md0: bitmap initialized from disk: read 2/2 pages, set 0 of 44711 bits
[ 39.375858] md0: detected capacity change from 0 to 9001374842880
[ 39.386975] md0: unknown partition table
[ 43.251716] EXT4-fs (md0): mounted filesystem with ordered data mode. Opts: (null)
[ 43.673536] systemd-journald[63]: Received request to flush runtime journal from PID 1
[ 47.789902] ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 51.030059] mv643xx_eth_port mv643xx_eth_port.0: eth0: link up, 1000 Mb/s, full duplex, flow control disabled
[ 51.030249] ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 61.285847] eth0: no IPv6 routers present
[ 81.455114] FS-Cache: Netfs 'cifs' registered for caching
[ 81.889013] CIFS VFS: default security mechanism requested. The default security mechanism will be upgraded from ntlm to ntlmv2 in kernel release 3.2
[ 155.088590] CIFS VFS: Received no data, expecting 4
')

[john3voltas]

Nice posts, Sergeanter.
Keep it coming.

Cheers

PS: BTW could you please let us know how much power that multi-bay enclosure uses? We're already consuming 8Watt on the plug computer. I wouldn't want to buy an enclosure that consumes 5x or 10x that figure

[Sergeanter]

The backplane of the Sans Digital 4 bay enclosure draws 10W. With four red WD drives loaded and staying idle consumption becomes 24W. I need to put an exhaust fan to the attic above the closet where I plan to put it. In terms of speed and power draw it is in between my old RAID on Pentium4 and my all in one router with laptop drive. Speed is OK to stream video from it while pulling a few torrents. I have bought another Pogo Mobile for rtorrent and mldonkey.
