Dockstar Pinout SDHC Card and I2C

Plugging in devices such as LAN adapters, Wi-Fi cards, printers, etc. to Arch Linux ARM.

Re: Dockstar Pinout SDHC Card and I2C

Postby ygator » Wed Sep 08, 2010 11:48 pm

@mindsmith

Did you look into the RTC?
ygator

Posts: 97
Joined: Tue Aug 10, 2010 9:37 pm

Re: Dockstar Pinout SDHC Card and I2C

Postby mindsmith » Thu Sep 09, 2010 7:17 am

yes here it is, you must connect the 32.768 kHz crystal, the two resistors you have to remove, because this are 0 Ohm to ground resistors. I realise the i forget the RCT Battery pins, i will measuring it today and update you.
Attachments
mindsmith

Posts: 10
Joined: Sun Sep 05, 2010 7:58 am

Re: Dockstar Pinout SDHC Card and I2C

Postby mindsmith » Thu Sep 09, 2010 7:29 pm

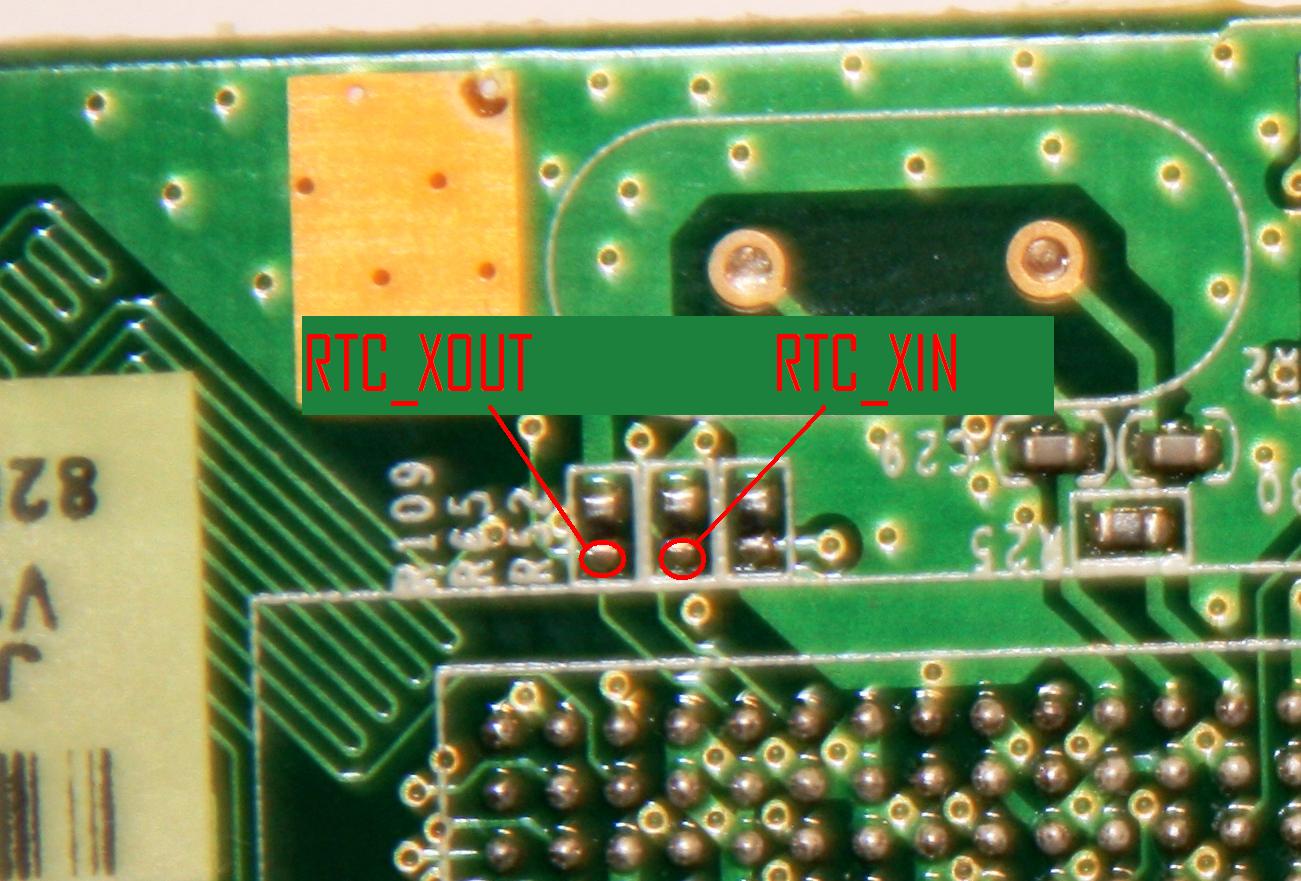

Now here the new Picture for the RTC Pinout.
RTC_XOUT
RTC_XIN
RTC_AVSS (is connected to the system ground)
RTC_AVDD (Pin for the RTC Battery)
Attachments
mindsmith

Posts: 10
Joined: Sun Sep 05, 2010 7:58 am

Re: Dockstar Pinout SDHC Card and I2C

Postby ygator » Fri Sep 10, 2010 3:09 am

thanks mindsmith
ygator

Posts: 97
Joined: Tue Aug 10, 2010 9:37 pm

Re: Dockstar Pinout SDHC Card and I2C

Postby bzboi » Fri Sep 10, 2010 2:25 pm

$this->bbcode_second_pass_quote('mindsmith', 'N')ow here the new Picture for the RTC Pinout.
RTC_XOUT
RTC_XIN
RTC_AVSS (is connected to the system ground)
RTC_AVDD (Pin for the RTC Battery)


Cool! Thanks!
bzboi

Posts: 55
Joined: Sun Jul 11, 2010 5:39 pm

Re: Dockstar Pinout SDHC Card and I2C

Postby mindsmith » Fri Sep 10, 2010 6:59 pm

No Problem, all information for free ;-)
But please share the information too, if somebody do something with it (I2S Audio, uBoot with SD-Card Support, or something else)
Thank you to all.
mindsmith

Posts: 10
Joined: Sun Sep 05, 2010 7:58 am

Re: Dockstar Pinout SDHC Card and I2C

Postby hojnikb » Sat Sep 11, 2010 7:43 am

Nice to see progress with RTC ! :D :D
A step by step guide on how to fix up clock would be nice 8-)
+°´°+,¸¸,+°´°~ +°´°+,¸¸,+°´°~I ♥ my DockStar :oops:~°´°+,¸¸,+°´°++°´°+,¸¸,+°´°~
Linux = Be root
Windows = reboot

+°´°+,¸¸,+°´°~DockStar, Marvell CPU @ 1.2Ghz, 128MB RAM, 4GB rootfs + 160GB°´°+,¸¸,+°´°+
hojnikb

Posts: 104
Joined: Thu Jul 08, 2010 11:57 am

Re: Dockstar Pinout SDHC Card and I2C

Postby mindsmith » Sat Sep 11, 2010 7:46 pm

Had an error in one picture, here the right one. Sorry about it.
There was an writing error on MPP[16].
Attachments
mindsmith

Posts: 10
Joined: Sun Sep 05, 2010 7:58 am

Re: Dockstar Pinout SDHC Card and I2C

Postby Pisami » Sun Sep 26, 2010 4:21 pm

Hi All! I'm wondering how to enable the on-board S/PDIF audio output. Do I need to do more than solder 2 wires to the pins #37 and #38 or what? I read the Marvell documentation and it says those pins output minimum voltage is 2.4V. Wikipedia says that S/PDIF minimum input voltage is 0.2V. I don't want the magic smoke to escape from my AV equipment, nor the Dockstar.

Thank you if you can help me.
Pisami

Posts: 2
Joined: Sun Sep 26, 2010 2:44 pm

Re: Dockstar Pinout SDHC Card and I2C

Postby blurry » Sun Sep 26, 2010 6:45 pm

I'm not an expert in this matter, but a resistor divider might help. Are we sure it's really s/pdif and not something else like AES3? Anyway, this page might help identify a easy resistor circuit that could work, if it really is just a matter of voltage levels.

http://www.rane.com/note149.html
blurry

Posts: 17
Joined: Tue Aug 31, 2010 2:52 pm
