New Setup with Pi4 8GB - Will not seem to boot

[fsociety3765]

I've got Arch running bare metal on another smaller little Macbook so I might just try running through the SD card setup on that machine too.

[fsociety3765]

Also, if I were to get Raspberry Pi OS back up and running. Is there any information I can glean from it that may be helpful?

I did update the firmware before starting all this. I didn't make a note of the firmware version etc.

[solskogen]

Try disconnecting your mouse. I had a issue with a mouse that caused u-boot to not being able to boot Arch Linux. And as soon as you've booted, install the linux-rpi kernel (which don't use u-boot)

[graysky]

I am out of ideas. What does this output:
$this->bbcode_second_pass_code('', 'md5sum ArchLinuxARM-rpi-aarch64-latest.tar.gz')

[fsociety3765]

I have no mouse or keyboard connected. No USB devices are connected. Just USB-C for power.

$this->bbcode_second_pass_code('', '
cat ArchLinuxARM-rpi-aarch64-latest.tar.gz.md5
1b687a996354f11d01df7e380c6affb8 ArchLinuxARM-rpi-aarch64-latest.tar.gz
')
$this->bbcode_second_pass_code('', '
md5sum ArchLinuxARM-rpi-aarch64-latest.tar.gz
1b687a996354f11d01df7e380c6affb8 ArchLinuxARM-rpi-aarch64-latest.tar.gz
')
$this->bbcode_second_pass_code('', '
gpg --verify ArchLinuxARM-rpi-aarch64-latest.tar.gz.sig ArchLinuxARM-rpi-aarch64-latest.tar.gz
gpg: Signature made Wed 10 Aug 2022 02:56:53 BST
gpg: using RSA key 68B3537F39A313B3E574D06777193F152BDBE6A6
gpg: Can't check signature: No public key
')

[fsociety3765]

I have also now tried another standard AC/USB 5V adapter. This one is beefier at 5V 4A 20W. It came with a GLiNet OpenWrt router I have. That also gives me the same result.

I think it's safe to say at least one of these power supplies should work. And they all work with Raspberry Pi OS.

I also tried last night setting up the SD card from MacBook I have that is running Arch natively. Same result.

I am now in the process of trying a completely different SD card. It's a brand new one, albeit smaller in size (32GB).

Will report back on how I get on. If this still fails then I too am completely out of ideas.

Could there be something different about my Pi4 board? It was brand new, and I paid way over the odds for it.

[fsociety3765]

Tried the new SD card. Same result.

Can't understand what could be wrong?

The first SD card I was using is a SanDisk Extreme Plus 64GB Class 1 MicroSD XC. The second one is a SanDisk Extreme 32GB Class 3 MicroSD HC.

Are there any differences between OS's and what SD cards they can run on?

[fsociety3765]

Current booted back into Raspberry Pi OS.

Not sure if any of this helps but some info none the less.

$this->bbcode_second_pass_code('', '
sudo rpi-eeprom-update
BOOTLOADER: up to date
CURRENT: Tue 18 Oct 10:57:44 UTC 2022 (1666090664)
LATEST: Tue 26 Apr 10:24:28 UTC 2022 (1650968668)
RELEASE: default (/lib/firmware/raspberrypi/bootloader/default)
Use raspi-config to change the release.

VL805_FW: Using bootloader EEPROM
VL805: up to date
CURRENT: 000138a1
LATEST: 000138a1
')
$this->bbcode_second_pass_code('', '
vcgencmd version
Aug 26 2022 14:03:16
Copyright (c) 2012 Broadcom
version 102f1e848393c2112206fadffaaf86db04e98326 (clean) (release) (start)
')
$this->bbcode_second_pass_code('', '
dmesg
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd083]
[ 0.000000] Linux version 5.15.61-v8+ (dom@buildbot) (aarch64-linux-gnu-gcc-8 (Ubuntu/Linaro 8.4.0-3ubuntu1) 8.4.0, GNU ld (GNU Binutils for Ubuntu) 2.34) #1579 SMP PREEMPT Fri Aug 26 11:16:44 BST 2022
[ 0.000000] random: crng init done
[ 0.000000] Machine model: Raspberry Pi 4 Model B Rev 1.5
[ 0.000000] efi: UEFI not found.
[ 0.000000] Reserved memory: created CMA memory pool at 0x000000001ac00000, size 320 MiB
[ 0.000000] OF: reserved mem: initialized node linux,cma, compatible id shared-dma-pool
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000000000000-0x000000003fffffff]
[ 0.000000] DMA32 [mem 0x0000000040000000-0x00000000ffffffff]
[ 0.000000] Normal [mem 0x0000000100000000-0x00000001ffffffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x000000003b3fffff]
[ 0.000000] node 0: [mem 0x0000000040000000-0x00000000fbffffff]
[ 0.000000] node 0: [mem 0x0000000100000000-0x00000001ffffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x00000001ffffffff]
[ 0.000000] On node 0, zone DMA32: 19456 pages in unavailable ranges
[ 0.000000] On node 0, zone Normal: 16384 pages in unavailable ranges
[ 0.000000] percpu: Embedded 28 pages/cpu s77272 r8192 d29224 u114688
[ 0.000000] pcpu-alloc: s77272 r8192 d29224 u114688 alloc=28*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Detected PIPT I-cache on CPU0
[ 0.000000] CPU features: detected: Spectre-v2
[ 0.000000] CPU features: detected: Spectre-v3a
[ 0.000000] CPU features: detected: Spectre-v4
[ 0.000000] CPU features: detected: Spectre-BHB
[ 0.000000] CPU features: kernel page table isolation forced ON by KASLR
[ 0.000000] CPU features: detected: Kernel page table isolation (KPTI)
[ 0.000000] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 2028848
[ 0.000000] Kernel command line: coherent_pool=1M 8250.nr_uarts=0 snd_bcm2835.enable_compat_alsa=0 snd_bcm2835.enable_hdmi=1 video=HDMI-A-1:3840x2160M@30 smsc95xx.macaddr=E4:5F:01:DB:1E:6C vc_mem.mem_base=0x3ec00000 vc_mem.mem_size=0x40000000 console=ttyS0,115200 console=tty1 root=PARTUUID=cfd2d6bf-02 rootfstype=ext4 fsck.repair=yes rootwait quiet splash plymouth.ignore-serial-consoles
[ 0.000000] Unknown kernel command line parameters "splash", will be passed to user space.
[ 0.000000] Dentry cache hash table entries: 1048576 (order: 11, 8388608 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] software IO TLB: mapped [mem 0x0000000037400000-0x000000003b400000] (64MB)
[ 0.000000] Memory: 7668324K/8245248K available (11520K kernel code, 1956K rwdata, 4140K rodata, 3840K init, 974K bss, 249244K reserved, 327680K cma-reserved)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] ftrace: allocating 38040 entries in 149 pages
[ 0.000000] ftrace: allocated 149 pages with 4 groups
[ 0.000000] trace event string verifier disabled
[ 0.000000] rcu: Preemptible hierarchical RCU implementation.
[ 0.000000] rcu: RCU event tracing is enabled.
[ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=256 to nr_cpu_ids=4.
[ 0.000000] Trampoline variant of Tasks RCU enabled.
[ 0.000000] Rude variant of Tasks RCU enabled.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GIC: Using split EOI/Deactivate mode
[ 0.000000] irq_brcmstb_l2: registered L2 intc (/soc/interrupt-controller@7ef00100, parent irq: 10)
[ 0.000000] arch_timer: cp15 timer(s) running at 54.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0xc743ce346, max_idle_ns: 440795203123 ns
[ 0.000000] sched_clock: 56 bits at 54MHz, resolution 18ns, wraps every 4398046511102ns
[ 0.000299] Console: colour dummy device 80x25
[ 0.000354] printk: console [tty1] enabled
[ 0.000426] Calibrating delay loop (skipped), value calculated using timer frequency.. 108.00 BogoMIPS (lpj=216000)
[ 0.000451] pid_max: default: 32768 minimum: 301
[ 0.000594] LSM: Security Framework initializing
[ 0.000858] Mount-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)
[ 0.000966] Mountpoint-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)
[ 0.002204] cgroup: Disabling memory control group subsystem
[ 0.004864] rcu: Hierarchical SRCU implementation.
[ 0.005972] EFI services will not be available.
[ 0.006494] smp: Bringing up secondary CPUs ...
[ 0.007539] Detected PIPT I-cache on CPU1
[ 0.007619] CPU1: Booted secondary processor 0x0000000001 [0x410fd083]
[ 0.008876] Detected PIPT I-cache on CPU2
[ 0.008926] CPU2: Booted secondary processor 0x0000000002 [0x410fd083]
[ 0.010044] Detected PIPT I-cache on CPU3
[ 0.010094] CPU3: Booted secondary processor 0x0000000003 [0x410fd083]
[ 0.010244] smp: Brought up 1 node, 4 CPUs
[ 0.010265] SMP: Total of 4 processors activated.
[ 0.010277] CPU features: detected: 32-bit EL0 Support
[ 0.010286] CPU features: detected: 32-bit EL1 Support
[ 0.010299] CPU features: detected: CRC32 instructions
[ 0.041906] CPU: All CPU(s) started at EL2
[ 0.041980] alternatives: patching kernel code
[ 0.043718] devtmpfs: initialized
[ 0.054623] Enabled cp15_barrier support
[ 0.054664] Enabled setend support
[ 0.054684] KASLR enabled
[ 0.054858] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.054890] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[ 0.063853] pinctrl core: initialized pinctrl subsystem
[ 0.064702] DMI not present or invalid.
[ 0.065424] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.069111] DMA: preallocated 1024 KiB GFP_KERNEL pool for atomic allocations
[ 0.069412] DMA: preallocated 1024 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.070317] DMA: preallocated 1024 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[ 0.070417] audit: initializing netlink subsys (disabled)
[ 0.070708] audit: type=2000 audit(0.068:1): state=initialized audit_enabled=0 res=1
[ 0.071241] thermal_sys: Registered thermal governor 'step_wise'
[ 0.071452] cpuidle: using governor menu
[ 0.071806] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.071999] ASID allocator initialised with 32768 entries
[ 0.072153] Serial: AMBA PL011 UART driver
[ 0.084875] bcm2835-mbox fe00b880.mailbox: mailbox enabled
[ 0.108369] raspberrypi-firmware soc:firmware: Attached to firmware from 2022-08-26T14:03:16, variant start
[ 0.112388] raspberrypi-firmware soc:firmware: Firmware hash is 102f1e848393c2112206fadffaaf86db04e98326
[ 0.162693] bcm2835-dma fe007000.dma: DMA legacy API manager, dmachans=0x1
[ 0.166791] vgaarb: loaded
[ 0.167205] SCSI subsystem initialized
[ 0.167427] usbcore: registered new interface driver usbfs
[ 0.167479] usbcore: registered new interface driver hub
[ 0.167543] usbcore: registered new device driver usb
[ 0.167909] usb_phy_generic phy: supply vcc not found, using dummy regulator
[ 0.168112] usb_phy_generic phy: dummy supplies not allowed for exclusive requests
[ 0.168391] pps_core: LinuxPPS API ver. 1 registered
[ 0.168404] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.168426] PTP clock support registered
[ 0.170010] clocksource: Switched to clocksource arch_sys_counter
[ 0.258545] VFS: Disk quotas dquot_6.6.0
[ 0.258644] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[ 0.258830] FS-Cache: Loaded
[ 0.259062] CacheFiles: Loaded
[ 0.260408] simple-framebuffer 3e29a000.framebuffer: framebuffer at 0x3e29a000, 0x960000 bytes
[ 0.260428] simple-framebuffer 3e29a000.framebuffer: format=a8r8g8b8, mode=1920x1280x32, linelength=7680
[ 0.260945] Console: switching to colour frame buffer device 240x80
[ 0.273976] simple-framebuffer 3e29a000.framebuffer: fb0: simplefb registered!
[ 0.284403] NET: Registered PF_INET protocol family
[ 0.285317] IP idents hash table entries: 131072 (order: 8, 1048576 bytes, linear)
[ 0.291026] tcp_listen_portaddr_hash hash table entries: 4096 (order: 4, 65536 bytes, linear)
[ 0.291114] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.291143] TCP established hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.291571] TCP bind hash table entries: 65536 (order: 8, 1048576 bytes, linear)
[ 0.292588] TCP: Hash tables configured (established 65536 bind 65536)
[ 0.292863] UDP hash table entries: 4096 (order: 5, 131072 bytes, linear)
[ 0.293000] UDP-Lite hash table entries: 4096 (order: 5, 131072 bytes, linear)
[ 0.293400] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.294511] RPC: Registered named UNIX socket transport module.
[ 0.294531] RPC: Registered udp transport module.
[ 0.294542] RPC: Registered tcp transport module.
[ 0.294552] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 0.294572] PCI: CLS 0 bytes, default 64
[ 0.297303] hw perfevents: enabled with armv8_cortex_a72 PMU driver, 7 counters available
[ 0.297636] kvm [1]: IPA Size Limit: 44 bits
[ 0.298869] kvm [1]: vgic interrupt IRQ9
[ 0.299139] kvm [1]: Hyp mode initialized successfully
[ 1.088553] Initialise system trusted keyrings
[ 1.088962] workingset: timestamp_bits=46 max_order=21 bucket_order=0
[ 1.095609] zbud: loaded
[ 1.097413] FS-Cache: Netfs 'nfs' registered for caching
[ 1.098161] NFS: Registering the id_resolver key type
[ 1.098197] Key type id_resolver registered
[ 1.098207] Key type id_legacy registered
[ 1.098327] nfs4filelayout_init: NFSv4 File Layout Driver Registering...
[ 1.098341] nfs4flexfilelayout_init: NFSv4 Flexfile Layout Driver Registering...
[ 1.099557] Key type asymmetric registered
[ 1.099574] Asymmetric key parser 'x509' registered
[ 1.099655] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 247)
[ 1.099920] io scheduler mq-deadline registered
[ 1.099935] io scheduler kyber registered
[ 1.108186] brcm-pcie fd500000.pcie: host bridge /scb/pcie@7d500000 ranges:
[ 1.108230] brcm-pcie fd500000.pcie: No bus range found for /scb/pcie@7d500000, using [bus 00-ff]
[ 1.108315] brcm-pcie fd500000.pcie: MEM 0x0600000000..0x063fffffff -> 0x00c0000000
[ 1.108395] brcm-pcie fd500000.pcie: IB MEM 0x0000000000..0x01ffffffff -> 0x0400000000
[ 1.172111] brcm-pcie fd500000.pcie: link up, 5.0 GT/s PCIe x1 (SSC)
[ 1.172475] brcm-pcie fd500000.pcie: PCI host bridge to bus 0000:00
[ 1.172494] pci_bus 0000:00: root bus resource [bus 00-ff]
[ 1.172512] pci_bus 0000:00: root bus resource [mem 0x600000000-0x63fffffff] (bus address [0xc0000000-0xffffffff])
[ 1.172595] pci 0000:00:00.0: [14e4:2711] type 01 class 0x060400
[ 1.172839] pci 0000:00:00.0: PME# supported from D0 D3hot
[ 1.176651] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring
[ 1.177011] pci 0000:01:00.0: [1106:3483] type 00 class 0x0c0330
[ 1.177133] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x00000fff 64bit]
[ 1.177554] pci 0000:01:00.0: PME# supported from D0 D3hot
[ 1.181527] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01
[ 1.181572] pci 0000:00:00.0: BAR 8: assigned [mem 0x600000000-0x6000fffff]
[ 1.181594] pci 0000:01:00.0: BAR 0: assigned [mem 0x600000000-0x600000fff 64bit]
[ 1.181634] pci 0000:00:00.0: PCI bridge to [bus 01]
[ 1.181654] pci 0000:00:00.0: bridge window [mem 0x600000000-0x6000fffff]
[ 1.192897] iproc-rng200 fe104000.rng: hwrng registered
[ 1.193373] vc-mem: phys_addr:0x00000000 mem_base=0x3ec00000 mem_size:0x40000000(1024 MiB)
[ 1.194840] gpiomem-bcm2835 fe200000.gpiomem: Initialised: Registers at 0xfe200000
[ 1.207332] brd: module loaded
[ 1.216971] loop: module loaded
[ 1.217756] Loading iSCSI transport class v2.0-870.
[ 1.222824] bcmgenet fd580000.ethernet: GENET 5.0 EPHY: 0x0000
[ 1.282173] unimac-mdio unimac-mdio.-19: Broadcom UniMAC MDIO bus
[ 1.283304] usbcore: registered new interface driver r8152
[ 1.283396] usbcore: registered new interface driver lan78xx
[ 1.283449] usbcore: registered new interface driver smsc95xx
[ 1.330336] pci 0000:00:00.0: enabling device (0000 -> 0002)
[ 1.330523] xhci_hcd 0000:01:00.0: xHCI Host Controller
[ 1.330555] xhci_hcd 0000:01:00.0: new USB bus registered, assigned bus number 1
[ 1.331307] xhci_hcd 0000:01:00.0: hcc params 0x002841eb hci version 0x100 quirks 0x00003c0000000890
[ 1.332360] xhci_hcd 0000:01:00.0: xHCI Host Controller
[ 1.332383] xhci_hcd 0000:01:00.0: new USB bus registered, assigned bus number 2
[ 1.332404] xhci_hcd 0000:01:00.0: Host supports USB 3.0 SuperSpeed
[ 1.332828] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.15
[ 1.332848] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 1.332864] usb usb1: Product: xHCI Host Controller
[ 1.332876] usb usb1: Manufacturer: Linux 5.15.61-v8+ xhci-hcd
[ 1.332889] usb usb1: SerialNumber: 0000:01:00.0
[ 1.333608] hub 1-0:1.0: USB hub found
[ 1.333677] hub 1-0:1.0: 1 port detected
[ 1.334650] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.15
[ 1.334671] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 1.334685] usb usb2: Product: xHCI Host Controller
[ 1.334698] usb usb2: Manufacturer: Linux 5.15.61-v8+ xhci-hcd
[ 1.334710] usb usb2: SerialNumber: 0000:01:00.0
[ 1.335374] hub 2-0:1.0: USB hub found
[ 1.335469] hub 2-0:1.0: 4 ports detected
[ 1.337185] dwc_otg: version 3.00a 10-AUG-2012 (platform bus)
[ 1.337495] dwc_otg: FIQ enabled
[ 1.337506] dwc_otg: NAK holdoff enabled
[ 1.337516] dwc_otg: FIQ split-transaction FSM enabled
[ 1.337529] Module dwc_common_port init
[ 1.338143] usbcore: registered new interface driver uas
[ 1.338237] usbcore: registered new interface driver usb-storage
[ 1.338462] mousedev: PS/2 mouse device common for all mice
[ 1.344080] sdhci: Secure Digital Host Controller Interface driver
[ 1.344101] sdhci: Copyright(c) Pierre Ossman
[ 1.344727] sdhci-pltfm: SDHCI platform and OF driver helper
[ 1.348209] ledtrig-cpu: registered to indicate activity on CPUs
[ 1.348810] hid: raw HID events driver (C) Jiri Kosina
[ 1.348972] usbcore: registered new interface driver usbhid
[ 1.348985] usbhid: USB HID core driver
[ 1.349309] ashmem: initialized
[ 1.357562] NET: Registered PF_PACKET protocol family
[ 1.357685] Key type dns_resolver registered
[ 1.358959] registered taskstats version 1
[ 1.358997] Loading compiled-in X.509 certificates
[ 1.359697] Key type ._fscrypt registered
[ 1.359713] Key type .fscrypt registered
[ 1.359723] Key type fscrypt-provisioning registered
[ 1.371494] uart-pl011 fe201000.serial: there is not valid maps for state default
[ 1.371792] uart-pl011 fe201000.serial: cts_event_workaround enabled
[ 1.371968] fe201000.serial: ttyAMA0 at MMIO 0xfe201000 (irq = 19, base_baud = 0) is a PL011 rev2
[ 1.380743] bcm2835-wdt bcm2835-wdt: Broadcom BCM2835 watchdog timer
[ 1.381233] bcm2835-power bcm2835-power: Broadcom BCM2835 power domains driver
[ 1.382448] mmc-bcm2835 fe300000.mmcnr: mmc_debug:0 mmc_debug2:0
[ 1.382467] mmc-bcm2835 fe300000.mmcnr: DMA channel allocated
[ 1.412847] of_cfs_init
[ 1.413011] of_cfs_init: OK
[ 1.449121] mmc0: SDHCI controller on fe340000.mmc [fe340000.mmc] using ADMA
[ 1.449475] Waiting for root device PARTUUID=cfd2d6bf-02...
[ 1.500731] mmc1: new high speed SDIO card at address 0001
[ 1.549689] mmc0: new ultra high speed DDR50 SDXC card at address aaaa
[ 1.550651] mmcblk0: mmc0:aaaa SE64G 59.5 GiB
[ 1.553445] mmcblk0: p1 p2
[ 1.554048] mmcblk0: mmc0:aaaa SE64G 59.5 GiB
[ 1.565595] EXT4-fs (mmcblk0p2): INFO: recovery required on readonly filesystem
[ 1.565622] EXT4-fs (mmcblk0p2): write access will be enabled during recovery
[ 1.586078] usb 1-1: new high-speed USB device number 2 using xhci_hcd
[ 1.736674] usb 1-1: New USB device found, idVendor=2109, idProduct=3431, bcdDevice= 4.21
[ 1.736709] usb 1-1: New USB device strings: Mfr=0, Product=1, SerialNumber=0
[ 1.736725] usb 1-1: Product: USB2.0 Hub
[ 1.738496] hub 1-1:1.0: USB hub found
[ 1.738772] hub 1-1:1.0: 4 ports detected
[ 1.764586] EXT4-fs (mmcblk0p2): recovery complete
[ 1.766830] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null). Quota mode: none.
[ 1.766927] VFS: Mounted root (ext4 filesystem) readonly on device 179:2.
[ 1.767552] devtmpfs: mounted
[ 1.775389] Freeing unused kernel memory: 3840K
[ 1.775604] Run /sbin/init as init process
[ 1.775615] with arguments:
[ 1.775624] /sbin/init
[ 1.775633] splash
[ 1.775642] with environment:
[ 1.775651] HOME=/
[ 1.775660] TERM=linux
[ 2.103833] systemd[1]: System time before build time, advancing clock.
[ 2.289118] NET: Registered PF_INET6 protocol family
[ 2.291037] Segment Routing with IPv6
[ 2.291087] In-situ OAM (IOAM) with IPv6
[ 2.356442] systemd[1]: systemd 247.3-7+deb11u1 running in system mode. (+PAM +AUDIT +SELINUX +IMA +APPARMOR +SMACK +SYSVINIT +UTMP +LIBCRYPTSETUP +GCRYPT +GNUTLS +ACL +XZ +LZ4 +ZSTD +SECCOMP +BLKID +ELFUTILS +KMOD +IDN2 -IDN +PCRE2 default-hierarchy=unified)
[ 2.357430] systemd[1]: Detected architecture arm64.
[ 2.359019] systemd[1]: Set hostname to <raspberrypi>.
[ 2.918878] systemd[1]: /lib/systemd/system/plymouth-start.service:16: Unit configured to use KillMode=none. This is unsafe, as it disables systemd's process lifecycle management for the service. Please update your service to use a safer KillMode=, such as 'mixed' or 'control-group'. Support for KillMode=none is deprecated and will eventually be removed.
[ 3.053461] systemd[1]: Queued start job for default target Graphical Interface.
[ 3.057955] systemd[1]: Created slice system-getty.slice.
[ 3.059357] systemd[1]: Created slice system-modprobe.slice.
[ 3.060301] systemd[1]: Created slice system-systemd\x2dfsck.slice.
[ 3.061116] systemd[1]: Created slice User and Session Slice.
[ 3.061597] systemd[1]: Started Forward Password Requests to Wall Directory Watch.
[ 3.062745] systemd[1]: Set up automount Arbitrary Executable File Formats File System Automount Point.
[ 3.063180] systemd[1]: Reached target Slices.
[ 3.063305] systemd[1]: Reached target Swap.
[ 3.066647] systemd[1]: Listening on Syslog Socket.
[ 3.067409] systemd[1]: Listening on fsck to fsckd communication Socket.
[ 3.067805] systemd[1]: Listening on initctl Compatibility Named Pipe.
[ 3.069063] systemd[1]: Listening on Journal Audit Socket.
[ 3.069903] systemd[1]: Listening on Journal Socket (/dev/log).
[ 3.070914] systemd[1]: Listening on Journal Socket.
[ 3.075088] systemd[1]: Listening on udev Control Socket.
[ 3.075947] systemd[1]: Listening on udev Kernel Socket.
[ 3.077000] systemd[1]: Condition check resulted in Huge Pages File System being skipped.
[ 3.081099] systemd[1]: Mounting POSIX Message Queue File System...
[ 3.085569] systemd[1]: Mounting RPC Pipe File System...
[ 3.091005] systemd[1]: Mounting Kernel Debug File System...
[ 3.096331] systemd[1]: Mounting Kernel Trace File System...
[ 3.096837] systemd[1]: Condition check resulted in Kernel Module supporting RPCSEC_GSS being skipped.
[ 3.103319] systemd[1]: Starting Restore / save the current clock...
[ 3.108823] systemd[1]: Starting Set the console keyboard layout...
[ 3.114295] systemd[1]: Starting Create list of static device nodes for the current kernel...
[ 3.124478] systemd[1]: Starting Load Kernel Module configfs...
[ 3.138535] systemd[1]: Starting Load Kernel Module drm...
[ 3.147286] systemd[1]: Starting Load Kernel Module fuse...
[ 3.152022] systemd[1]: Condition check resulted in Set Up Additional Binary Formats being skipped.
[ 3.156948] systemd[1]: Starting File System Check on Root Device...
[ 3.166354] systemd[1]: Starting Journal Service...
[ 3.176666] systemd[1]: Starting Load Kernel Modules...
[ 3.181753] systemd[1]: Starting Coldplug All udev Devices...
[ 3.209512] systemd[1]: Mounted POSIX Message Queue File System.
[ 3.226974] systemd[1]: Mounted RPC Pipe File System.
[ 3.228198] systemd[1]: Mounted Kernel Debug File System.
[ 3.228960] systemd[1]: Mounted Kernel Trace File System.
[ 3.231211] systemd[1]: Finished Restore / save the current clock.
[ 3.234187] systemd[1]: Finished Create list of static device nodes for the current kernel.
[ 3.236609] fuse: init (API version 7.34)
[ 3.236622] systemd[1]: modprobe@configfs.service: Succeeded.
[ 3.249715] systemd[1]: Finished Load Kernel Module configfs.
[ 3.252401] systemd[1]: modprobe@fuse.service: Succeeded.
[ 3.253873] systemd[1]: Finished Load Kernel Module fuse.
[ 3.272682] systemd[1]: Mounting FUSE Control File System...
[ 3.290941] i2c_dev: i2c /dev entries driver
[ 3.292430] systemd[1]: Mounting Kernel Configuration File System...
[ 3.307697] systemd[1]: Finished Load Kernel Modules.
[ 3.308841] systemd[1]: Mounted FUSE Control File System.
[ 3.316718] systemd[1]: Started File System Check Daemon to report status.
[ 3.325393] systemd[1]: Starting Apply Kernel Variables...
[ 3.337656] systemd[1]: Mounted Kernel Configuration File System.
[ 3.364019] systemd[1]: modprobe@drm.service: Succeeded.
[ 3.365656] systemd[1]: Finished Load Kernel Module drm.
[ 3.389700] systemd[1]: Finished Apply Kernel Variables.
[ 3.441586] systemd[1]: Finished File System Check on Root Device.
[ 3.446557] systemd[1]: Starting Remount Root and Kernel File Systems...
[ 3.530826] systemd[1]: Started Journal Service.
[ 3.594731] EXT4-fs (mmcblk0p2): re-mounted. Opts: (null). Quota mode: none.
[ 3.648078] systemd-journald[137]: Received client request to flush runtime journal.
[ 3.654407] systemd-journald[137]: File /var/log/journal/d4d81fb7064e4adab7e5f7dc4edd9882/system.journal corrupted or uncleanly shut down, renaming and replacing.
[ 4.758106] mc: Linux media interface: v0.10
[ 4.795795] vc_sm_cma: module is from the staging directory, the quality is unknown, you have been warned.
[ 4.797736] bcm2835_vc_sm_cma_probe: Videocore shared memory driver
[ 4.797772] [vc_sm_connected_init]: start
[ 4.808389] [vc_sm_connected_init]: installed successfully
[ 4.887051] videodev: Linux video capture interface: v2.00
[ 4.940718] snd_bcm2835: module is from the staging directory, the quality is unknown, you have been warned.
[ 4.946608] brcmstb-i2c fef04500.i2c: @97500hz registered in polling mode
[ 4.952750] rpivid_hevc: module is from the staging directory, the quality is unknown, you have been warned.
[ 4.956769] rpivid feb10000.codec: Device registered as /dev/video19
[ 4.959031] brcmstb-i2c fef09500.i2c: @97500hz registered in polling mode
[ 4.968018] bcm2835_mmal_vchiq: module is from the staging directory, the quality is unknown, you have been warned.
[ 4.985649] bcm2835_audio bcm2835_audio: card created with 8 channels
[ 5.004516] bcm2835_isp: module is from the staging directory, the quality is unknown, you have been warned.
[ 5.017528] bcm2835-isp bcm2835-isp: Device node output[0] registered as /dev/video13
[ 5.034869] bcm2835-isp bcm2835-isp: Device node capture[0] registered as /dev/video14
[ 5.037734] bcm2835-isp bcm2835-isp: Device node capture[1] registered as /dev/video15
[ 5.041569] bcm2835-isp bcm2835-isp: Device node stats[2] registered as /dev/video16
[ 5.041626] bcm2835-isp bcm2835-isp: Register output node 0 with media controller
[ 5.041650] bcm2835-isp bcm2835-isp: Register capture node 1 with media controller
[ 5.041668] bcm2835-isp bcm2835-isp: Register capture node 2 with media controller
[ 5.041684] bcm2835-isp bcm2835-isp: Register capture node 3 with media controller
[ 5.073082] bcm2835-isp bcm2835-isp: Device node output[0] registered as /dev/video20
[ 5.080068] bcm2835-isp bcm2835-isp: Device node capture[0] registered as /dev/video21
[ 5.085904] bcm2835-isp bcm2835-isp: Device node capture[1] registered as /dev/video22
[ 5.086638] bcm2835-isp bcm2835-isp: Device node stats[2] registered as /dev/video23
[ 5.086680] bcm2835-isp bcm2835-isp: Register output node 0 with media controller
[ 5.086703] bcm2835-isp bcm2835-isp: Register capture node 1 with media controller
[ 5.086720] bcm2835-isp bcm2835-isp: Register capture node 2 with media controller
[ 5.086736] bcm2835-isp bcm2835-isp: Register capture node 3 with media controller
[ 5.087085] bcm2835-isp bcm2835-isp: Loaded V4L2 bcm2835-isp
[ 5.088089] bcm2835_codec: module is from the staging directory, the quality is unknown, you have been warned.
[ 5.127008] bcm2835-codec bcm2835-codec: Device registered as /dev/video10
[ 5.127087] bcm2835-codec bcm2835-codec: Loaded V4L2 decode
[ 5.130224] bcm2835-codec bcm2835-codec: Device registered as /dev/video11
[ 5.130281] bcm2835-codec bcm2835-codec: Loaded V4L2 encode
[ 5.133900] bcm2835_v4l2: module is from the staging directory, the quality is unknown, you have been warned.
[ 5.134326] bcm2835-codec bcm2835-codec: Device registered as /dev/video12
[ 5.134371] bcm2835-codec bcm2835-codec: Loaded V4L2 isp
[ 5.137593] bcm2835-codec bcm2835-codec: Device registered as /dev/video18
[ 5.137649] bcm2835-codec bcm2835-codec: Loaded V4L2 image_fx
[ 5.145130] bcm2835-codec bcm2835-codec: Device registered as /dev/video31
[ 5.145203] bcm2835-codec bcm2835-codec: Loaded V4L2 encode_image
[ 5.272779] [drm] Initialized v3d 1.0.0 20180419 for fec00000.v3d on minor 0
[ 5.755939] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[ 5.807851] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[ 5.830895] cfg80211: loaded regulatory.db is malformed or signature is missing/invalid
[ 6.291398] checking generic (3e29a000 960000) vs hw (0 ffffffffffffffff)
[ 6.291433] fb0: switching to vc4 from simple
[ 6.292199] Console: switching to colour dummy device 80x25
[ 6.381336] vc4-drm gpu: bound fe400000.hvs (ops vc4_hvs_ops [vc4])
[ 6.400667] Registered IR keymap rc-cec
[ 6.437900] rc rc0: vc4 as /devices/platform/soc/fef00700.hdmi/rc/rc0
[ 6.440497] brcmfmac: F1 signature read @0x18000000=0x15264345
[ 6.463060] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43455-sdio for chip BCM4345/6
[ 6.463848] brcmfmac mmc1:0001:1: Direct firmware load for brcm/brcmfmac43455-sdio.raspberrypi,4-model-b.bin failed with error -2
[ 6.546095] usbcore: registered new interface driver brcmfmac
[ 6.547851] input: vc4 as /devices/platform/soc/fef00700.hdmi/rc/rc0/input0
[ 6.653773] vc4-drm gpu: bound fe400000.hvs (ops vc4_hvs_ops [vc4])
[ 6.659522] Registered IR keymap rc-cec
[ 6.659770] rc rc0: vc4 as /devices/platform/soc/fef00700.hdmi/rc/rc0
[ 6.660023] input: vc4 as /devices/platform/soc/fef00700.hdmi/rc/rc0/input1
[ 6.671723] vc4-drm gpu: bound fef00700.hdmi (ops vc4_hdmi_ops [vc4])
[ 6.695396] Registered IR keymap rc-cec
[ 6.695686] rc rc1: vc4 as /devices/platform/soc/fef05700.hdmi/rc/rc1
[ 6.695912] input: vc4 as /devices/platform/soc/fef05700.hdmi/rc/rc1/input2
[ 6.703191] vc4-drm gpu: bound fef05700.hdmi (ops vc4_hdmi_ops [vc4])
[ 6.703650] vc4-drm gpu: bound fe004000.txp (ops vc4_txp_ops [vc4])
[ 6.703990] vc4-drm gpu: bound fe206000.pixelvalve (ops vc4_crtc_ops [vc4])
[ 6.704296] vc4-drm gpu: bound fe207000.pixelvalve (ops vc4_crtc_ops [vc4])
[ 6.704609] vc4-drm gpu: bound fe20a000.pixelvalve (ops vc4_crtc_ops [vc4])
[ 6.704914] vc4-drm gpu: bound fe216000.pixelvalve (ops vc4_crtc_ops [vc4])
[ 6.705209] vc4-drm gpu: bound fec12000.pixelvalve (ops vc4_crtc_ops [vc4])
[ 6.714885] [drm] Initialized vc4 0.0.0 20140616 for gpu on minor 1
[ 6.728585] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43455-sdio for chip BCM4345/6
[ 6.728749] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43455-sdio for chip BCM4345/6
[ 6.737105] brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM4345/6 wl0: Nov 1 2021 00:37:25 version 7.45.241 (1a2f2fa CY) FWID 01-703fd60
[ 6.776794] vc4-drm gpu: [drm] The core clock cannot reach frequencies high enough to support 4k @ 60Hz.
[ 6.776825] vc4-drm gpu: [drm] Please change your config.txt file to add hdmi_enable_4kp60.
[ 6.852806] Console: switching to colour frame buffer device 480x135
[ 6.852881] vc4-drm gpu: [drm] fb0: vc4drmfb frame buffer device
[ 7.338095] uart-pl011 fe201000.serial: no DMA platform data
[ 7.471059] Adding 102396k swap on /var/swap. Priority:-2 extents:1 across:102396k SSFS
[ 7.959464] 8021q: 802.1Q VLAN Support v1.8
[ 8.339566] brcmfmac: brcmf_cfg80211_set_power_mgmt: power save enabled
[ 8.590696] bcmgenet fd580000.ethernet: configuring instance for external RGMII (RX delay)
[ 8.592294] bcmgenet fd580000.ethernet eth0: Link is Down
[ 12.670158] bcmgenet fd580000.ethernet eth0: Link is Up - 1Gbps/Full - flow control off
[ 12.670204] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 14.183849] Bluetooth: Core ver 2.22
[ 14.184833] NET: Registered PF_BLUETOOTH protocol family
[ 14.184859] Bluetooth: HCI device and connection manager initialized
[ 14.184892] Bluetooth: HCI socket layer initialized
[ 14.184915] Bluetooth: L2CAP socket layer initialized
[ 14.184964] Bluetooth: SCO socket layer initialized
[ 14.210351] Bluetooth: HCI UART driver ver 2.3
[ 14.210397] Bluetooth: HCI UART protocol H4 registered
[ 14.211451] Bluetooth: HCI UART protocol Three-wire (H5) registered
[ 14.214892] Bluetooth: HCI UART protocol Broadcom registered
[ 14.366093] hdmi-audio-codec hdmi-audio-codec.2.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19
[ 14.366232] MAI: soc_pcm_open() failed (-19)
[ 14.367795] hdmi-audio-codec hdmi-audio-codec.2.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19
[ 14.367897] MAI: soc_pcm_open() failed (-19)
[ 14.369253] hdmi-audio-codec hdmi-audio-codec.2.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19
[ 14.369341] MAI: soc_pcm_open() failed (-19)
[ 14.387608] hdmi-audio-codec hdmi-audio-codec.2.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19
[ 14.387744] MAI: soc_pcm_open() failed (-19)
[ 14.388417] hdmi-audio-codec hdmi-audio-codec.2.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19
[ 14.388513] MAI: soc_pcm_open() failed (-19)
[ 14.389105] hdmi-audio-codec hdmi-audio-codec.2.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19
[ 14.389179] MAI: soc_pcm_open() failed (-19)
[ 15.198175] hwmon hwmon1: Undervoltage detected!
[ 16.146922] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 16.146966] Bluetooth: BNEP filters: protocol multicast
[ 16.146998] Bluetooth: BNEP socket layer initialized
[ 16.189308] NET: Registered PF_ALG protocol family
[ 16.472993] Bluetooth: RFCOMM TTY layer initialized
[ 16.473116] Bluetooth: RFCOMM socket layer initialized
[ 16.473175] Bluetooth: RFCOMM ver 1.11
[ 19.230142] hwmon hwmon1: Voltage normalised
[ 31.710076] cam-dummy-reg: disabling
')
$this->bbcode_second_pass_code('', '
cat /proc/cpuinfo
processor : 0
BogoMIPS : 108.00
Features : fp asimd evtstrm crc32 cpuid
CPU implementer : 0x41
CPU architecture: 8
CPU variant : 0x0
CPU part : 0xd08
CPU revision : 3

processor : 1
BogoMIPS : 108.00
Features : fp asimd evtstrm crc32 cpuid
CPU implementer : 0x41
CPU architecture: 8
CPU variant : 0x0
CPU part : 0xd08
CPU revision : 3

processor : 2
BogoMIPS : 108.00
Features : fp asimd evtstrm crc32 cpuid
CPU implementer : 0x41
CPU architecture: 8
CPU variant : 0x0
CPU part : 0xd08
CPU revision : 3

processor : 3
BogoMIPS : 108.00
Features : fp asimd evtstrm crc32 cpuid
CPU implementer : 0x41
CPU architecture: 8
CPU variant : 0x0
CPU part : 0xd08
CPU revision : 3

Hardware : BCM2835
Revision : d03115
Serial : 1000000098f3a33a
Model : Raspberry Pi 4 Model B Rev 1.5
')

[fsociety3765]

Thinking I might try EndeavorOS for ARM if I can't get this working as that is probably the next closest thing to vanilla Arch.

[peter75]

I have same problem here.
I did follow instructions. Repeat those after failed attempt but still not able to boot.

I have original power adapter and was able to run ubuntu on my rpi4 with that power adapter.
SD card should be OK.

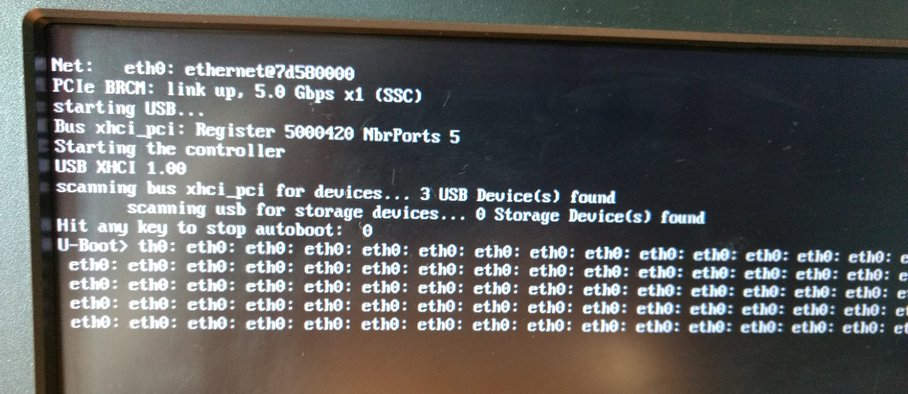

So I did plug monitor and keyboard and power on. RPI did stuck at start. see attached photo.
There is same error doesnt matter if eth cable is plug or unplug.

I did also try to hit any key but with not success.

thank you for any tip
